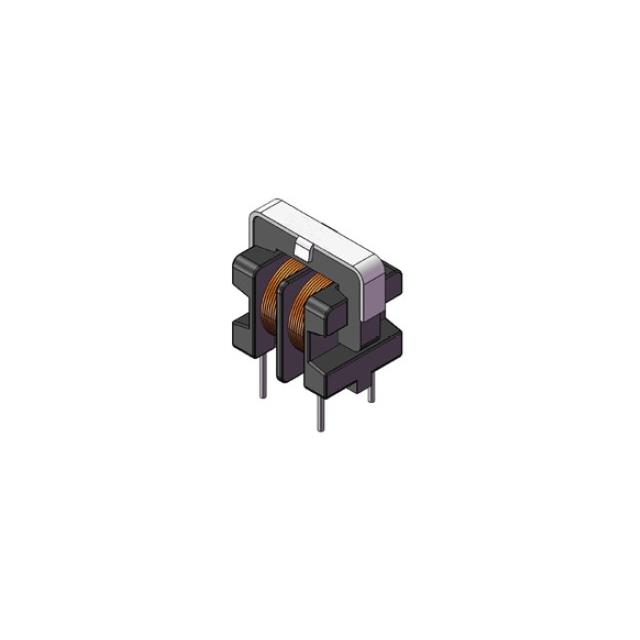

ECMT1V1717S-8R0-R

ECMT1V1717S-8R0-R

Part Number	ECMT1V1717S-8R0-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-ECMT1V1717S-8R0-R-ND 283-ECMT1V1717S-8R0-R
Description	CMC 8MH 800MA 2LN TH
Detailed Description	8 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 800mA DCR 1Ohm
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		PowerStor (Eaton)
Series		ECMT1V17
Packaging		Tray
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		0.669" L x 0.472" W (17.00mm x 12.00mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-40°C ~ 125°C
Height (Max)		0.669" (17.00mm)
Voltage Rating - AC		250V
Current Rating (Max)		800mA
DC Resistance (DCR) (Max)		1Ohm
Inductance @ Frequency		8 mH @ 1 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECMT1V1717S-8R0-R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2761

Can ship immediately.
