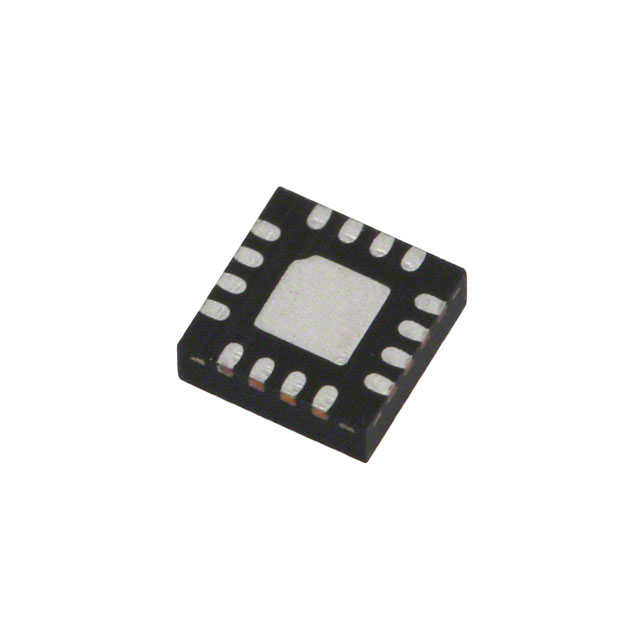

ECLAMP2342N.TCT

ECLAMP2342N.TCT

Part Number	ECLAMP2342N.TCT
Manufacturer	Semtech
Other Part Numbers	ECLAMP2342NTR-ND ECLAMP2342NCT-ND ECLAMP2342NDKR-ND ECLAMP2342NDKR ECLAMP2342NTR ECLAMP2342NTCT ECLAMP2342NCT
Description	FILTER RC(PI) 100 OHM/12PF SMD
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100Ohms, C = 12pF (Total) 16-QFN
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		Semtech
Series		EClamp™
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		16-QFN
Size / Dimension		0.118" L x 0.118" W (3.00mm x 3.00mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		R = 100Ohms, C = 12pF (Total)
Height		0.039" (1.00mm)
Attenuation Value		30dB @ 1GHz ~ 2.5GHz
Filter Order		2nd
Applications		Data Lines for Mobile Devices
Technology		RC (Pi)
Resistance - Channel (Ohms)		100
ESD Protection		Yes
Number of Channels		8

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Label Changes 28/Jun/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 3000

Can ship immediately.
