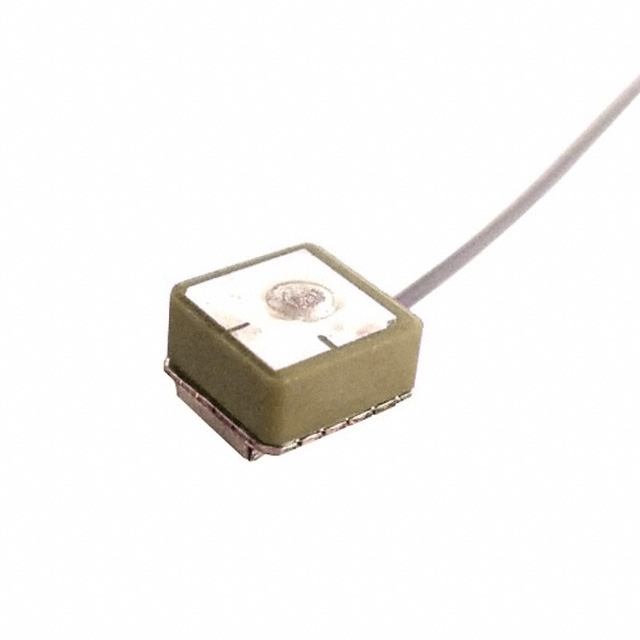

ECHO19/0.1M/UFL/S/S/17

ECHO19/0.1M/UFL/S/S/17

Part Number	ECHO19/0.1M/UFL/S/S/17
Manufacturer	Siretta
Other Part Numbers	ECHO19/0.1M/UFL/S/S/17-ND
Description	RF ANT 1.575GHZ CER PATCH U.FL
Detailed Description	1.575GHz GPS Ceramic Patch RF Antenna 16dB U.FL (UMCC), IPEX MHF1 Surface Mount
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Siretta
Series		ECHO 19
Packaging		Bulk
Part Status		Active
Mounting Type		Surface Mount
Applications		GPS
Gain		16dB
Termination		U.FL (UMCC), IPEX MHF1
Number of Bands		1
VSWR		1.8
Antenna Type		Ceramic Patch
Height (Max)		0.256" (6.50mm)
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.575GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECHO19/0.1M/UFL/S/S/17
Datasheets		What Parameters are Important for Cellular Antenna Evaluation?
Datasheets		Ceramic Material Change 01/Jul/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 274

Can ship immediately.
