EC381RM-12P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	EC381RM-12P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-EC381RM-12P-ND 2861-EC381RM-12P
Description	TERM BLK 12POS 3.81MM SCRW PLG

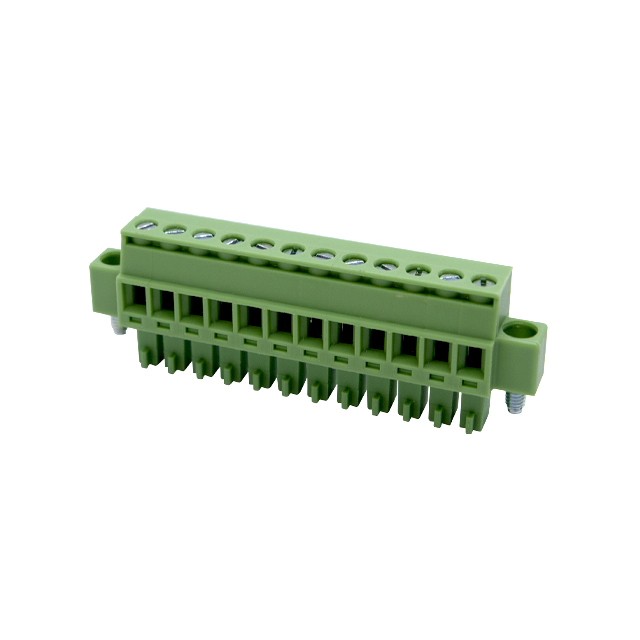

Detailed Description	12 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90° Free Hanging (In-Line)
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		EC381RM
Packaging		Bulk
Part Status		Active
Features		Mating Flange
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		12
Pitch		0.150" (3.81mm)
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw - Rising Cage Clamp
Current - IEC		14A
Number of Levels		1
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.2-1.5mm²
Positions Per Level		12
Plug Wire Entry		90°
Contact Mating Finish		Tin
Current - UL		8 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		EC381RM-12P

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
