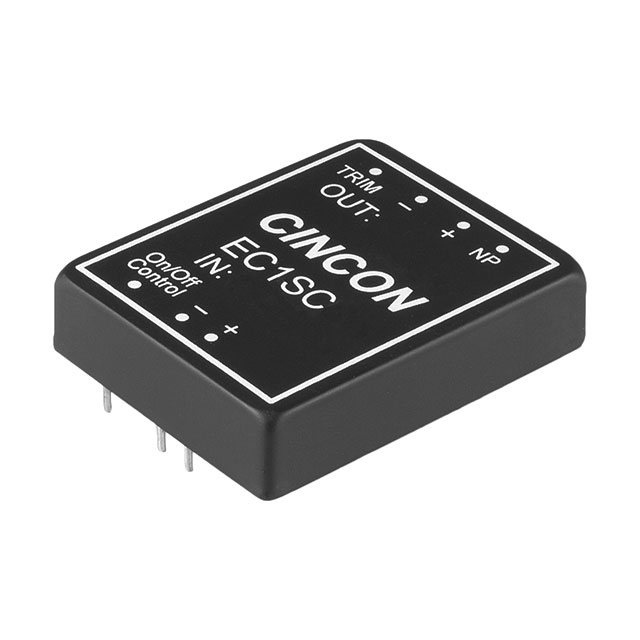

EC1SC14 _ DC DC Converters_Power Supplies

Part Number	EC1SC14
Manufacturer	Cincon
Other Part Numbers	2034-2576-ND 2034-2576
Description	DC DC CONVERTER +/-12V 20W
Detailed Description	Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 18V - 72V Input
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Cincon
Series		EC1SC (20W)
Packaging		Tube
Part Status		Active
Features		Remote On/Off, OCP, SCP
Package / Case		8-DIP Module, 7 Leads
Size / Dimension		2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-25°C ~ 100°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		72V
Approval Agency		cURus
Efficiency		84%
Current - Output (Max)		833mA, 833mA
Voltage - Input (Min)		18V
Voltage - Output 1		12V
Voltage - Output 2		-12V
Control Features		Enable, Active High
Power (Watts)		20 W
Number of Outputs		2
Voltage - Isolation		1.5 kV
Standard Number		60950-1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
