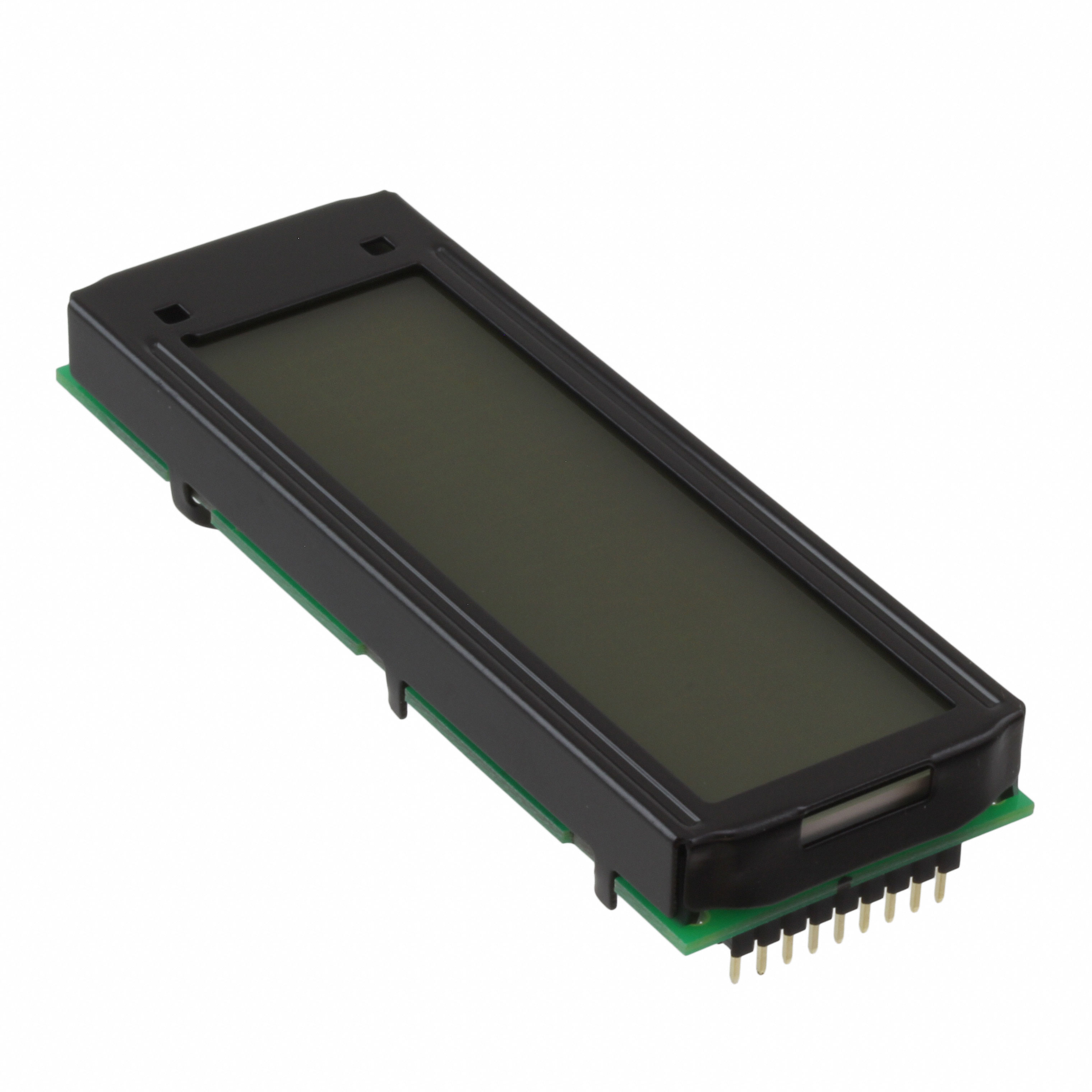

EA DIP203J-4NLW _ LCD, OLED Character and Numeric_Optoelectronics

Part Number	EA DIP203J-4NLW
Manufacturer	Electronic Assembly (Display Visions)
Other Part Numbers	1481-1046-ND 1481-1046
Description	LCD MOD 80DIG 20X4 TRANSMISV WHT
Detailed Description	Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel, 8-Bit, SPI 75.00mm x 26.80mm x 10.80mm

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Electronic Assembly (Display Visions)
Series		EA DIP203
Packaging		Bag
Part Status		Obsolete
Display Type		STN - Super-Twisted Nematic
Display Mode		Transmissive
Backlight		LED - White
Interface		Parallel, 8-Bit, SPI
Operating Temperature		-20°C ~ 70°C
Voltage - Supply		2.7V ~ 3.45V
Viewing Area		61.00mm L x 19.00mm W
Character Size		3.75mm H x 2.34mm W
Display Format		20 x 4
Character Format		5 x 8 Dots
Dot Size		0.44mm W x 0.46mm H
Outline L x W x H		75.00mm x 26.80mm x 10.80mm
Text Color		Black
Background Color		White
Number of Characters		80.0

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.20.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
