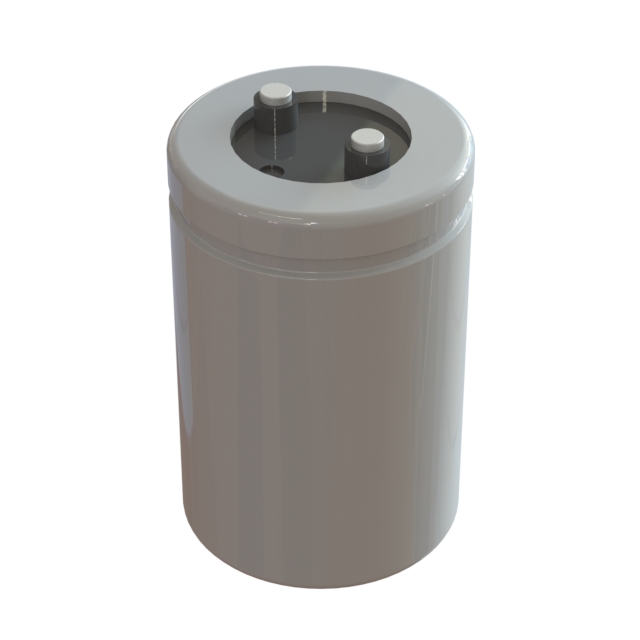

E36D451HPN222MDA5U _ Aluminum Electrolytic Capacitors_Capacitors

Part Number	E36D451HPN222MDA5U
Manufacturer	United Chemi-Con
Other Part Numbers	565-E36D451HPN222MDA5U-ND 565-E36D451HPN222MDA5U
Description	CAP ALUM 2200UF 20% 450V SCREW
Detailed Description	2200 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 114.5mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet	Datasheet

Category		Capacitors Aluminum Electrolytic Capacitors
Manufacturer		United Chemi-Con
Series		U36D
Packaging		Bulk
Part Status		Active
Tolerance		±20%
Package / Case		Radial, Can - Screw Terminals
Size / Dimension		2.500" Dia (63.50mm)
Polarization		Polar
Mounting Type		Chassis Mount
Operating Temperature		-40°C ~ 85°C
Applications		General Purpose
Lead Spacing		1.126" (28.60mm)
ESR (Equivalent Series Resistance)		114.5mOhm @ 120Hz
Lifetime @ Temp.		2000 Hrs @ 85°C
Height - Seated (Max)		4.125" (104.78mm)
Capacitance		2200 µF
Voltage - Rated		450 V
Ripple Current @ Low Frequency		6.86 A @ 120 Hz
Ripple Current @ High Frequency		9.604 A @ 3 kHz

RESOURCE TYPE		LINK
Datasheets		E36D451HPN222MDA5U

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0085
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
