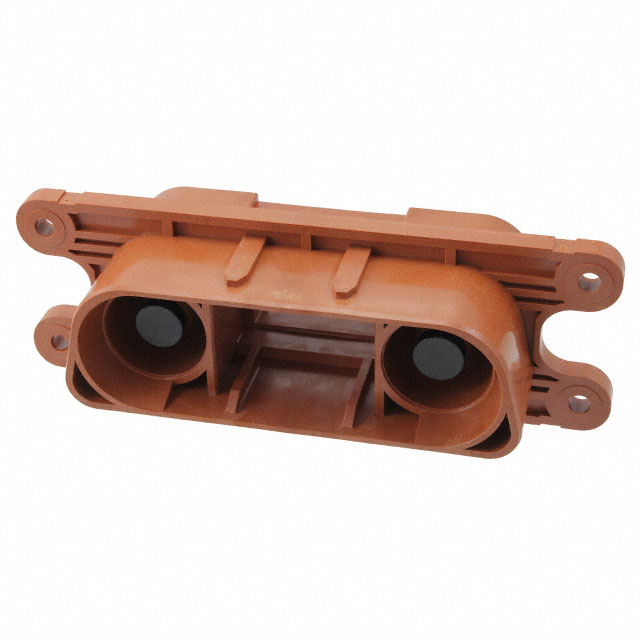

DW1P002ZH1

DW1P002ZH1

Part Number	DW1P002ZH1
Manufacturer	JAE Electronics
Other Part Numbers	670-2711-ND 670-2711
Description	CONN PLUG RACK & PANEL 2P PNL MT
Detailed Description	2 Connector Plug, Female Sockets Panel Mount Brown Rack and Panel
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Connectors, Interconnects Backplane Connectors Specialized
Manufacturer		JAE Electronics
Series		DW1
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Female Sockets
Contact Finish		Silver
Color		Brown
Voltage Rating		600V
Current Rating (Amps)		200A
Mounting Type		Panel Mount
Number of Positions		2
Operating Temperature		-25°C ~ 115°C
Number of Positions Loaded		All
Connector Style		Rack and Panel
Material Flammability Rating		UL94 V-0
Contact Layout, Typical		2 Coax

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 14

Can ship immediately.
