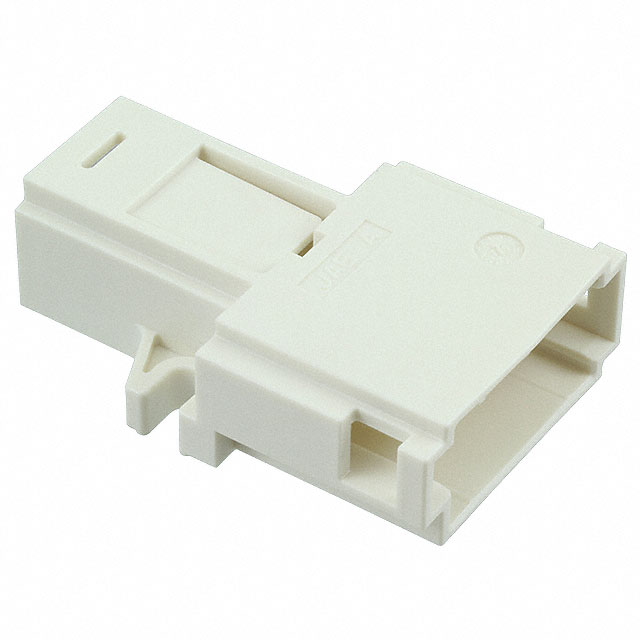

DW05P01CZZ2

DW05P01CZZ2

Part Number	DW05P01CZZ2
Manufacturer	JAE Electronics
Other Part Numbers	670-2855-ND 670-2855 2266-DW05P01CZZ2
Description	CONN PLUG HSG 1POS IVORY
Detailed Description	1 Rectangular Connectors - Housings Plug Ivory
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Manufacturer		JAE Electronics
Series		DW05
Packaging		Tray
Part Status		Active
Connector Type		Plug
Contact Termination		Crimp
Color		Ivory
Mounting Type		Free Hanging (In-Line)
Number of Positions		1
Operating Temperature		-40°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Latch Holder
Note		Contacts Not Included
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DW05P01CZZ2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
