Part Number |
DV18-250B-M
|
---|---|
Manufacturer | Panduit Corporation |
Other Part Numbers |
DV18-250B-M-ND
|
Description | CONN QC RCPT 18-22AWG 0.250 |

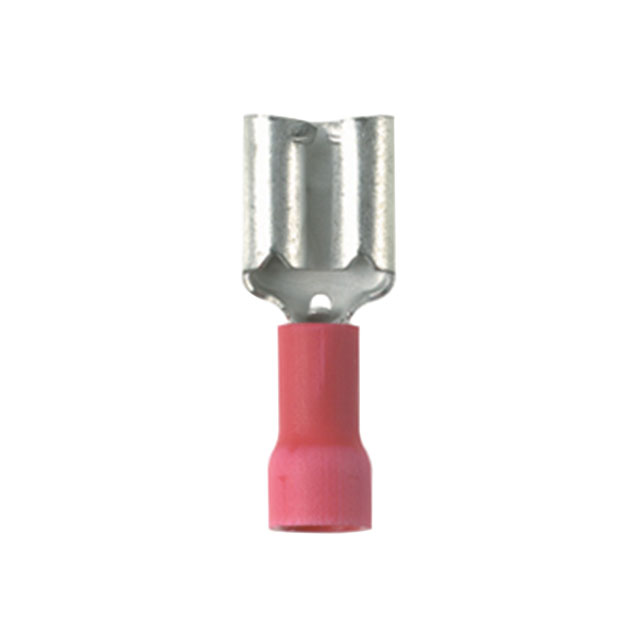

Detailed Description | 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Mating End Insulated |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Panduit Corporation | |
Series |
Pan-Term®
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | Serrated Termination | |
Gender | Female | |
Contact Finish | Tin | |
Color | Red | |
Mounting Type | Free Hanging (In-Line) | |
Wire Gauge | 18-22 AWG | |
Insulation | Non-Mating End Insulated | |
Terminal Type | Standard | |
Length - Overall | 0.810" (20.57mm) | |
Termination | Crimp | |
Tab Thickness | 0.032" (0.81mm) | |
Tab Width | 0.250" (6.35mm) | |
Contact Material | Brass | |
Insulation Diameter | 0.150" (3.81mm) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DV18-250B-M |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.90.4000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | Not applicable |
