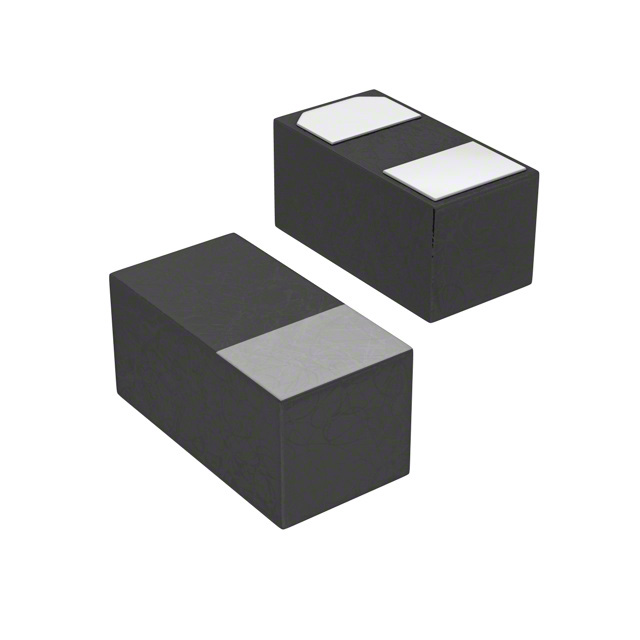

DSR01S30SC(TPL3)

Part Number
DSR01S30SC(TPL3)
Manufacturer Toshiba Electronic Devices and Storage Corporation
Other Part Numbers
DSR01S30SC(TPL3)TR-ND
DSR01S30SC(TPL3)CT-ND
DSR01S30SC(TPL3)DKR-ND
DSR01S30SCTPL3
DSR01S30SC (TPL3)
DSR01S30SC(TPL3)DKR
DSR01S30SC(TPL3)TR
DSR01S30SC(TPL3)CT
Description DIODE SCHOTTKY 30V 100MA SC2
Detailed Description Diode 30 V 100mA Surface Mount SC2

Product Attributes

Category
Manufacturer Toshiba Electronic Devices and Storage Corporation
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Speed Small Signal =< 200mA (Io), Any Speed
Technology Schottky
Capacitance @ Vr, F 8.2pF @ 0V, 1MHz
Current - Average Rectified (Io) 100mA
Supplier Device Package SC2
Operating Temperature - Junction 125°C (Max)
Voltage - DC Reverse (Vr) (Max) 30 V
Voltage - Forward (Vf) (Max) @ If 620 mV @ 100 mA
Current - Reverse Leakage @ Vr 700 µA @ 30 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
