DSPIC30F4012-30I/SP _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	DSPIC30F4012-30I/SP
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	DSPIC30F401230ISP-ND DSPIC30F401230ISP
Description	IC MCU 16BIT 48KB FLASH 28SPDIP
Detailed Description	dsPIC dsPIC™ 30F Microcontroller IC 16-Bit 30 MIPs 48KB (16K x 24) FLASH 28-SPDIP
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		dsPIC™ 30F
Packaging		Tube
Part Status		Active

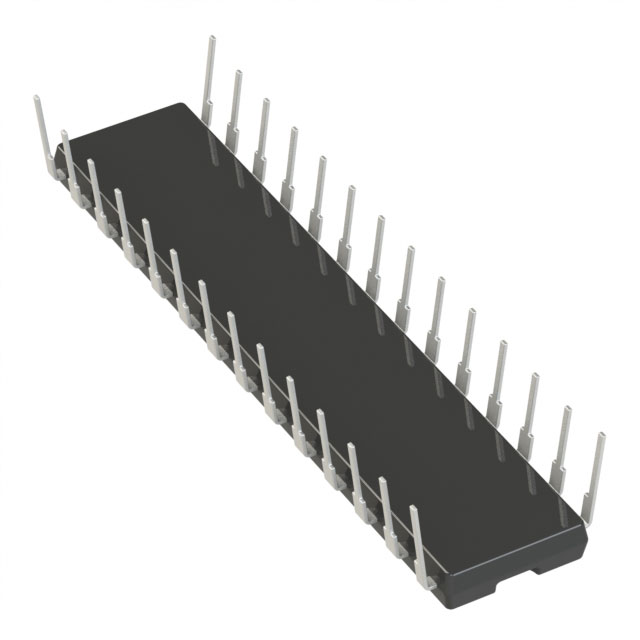

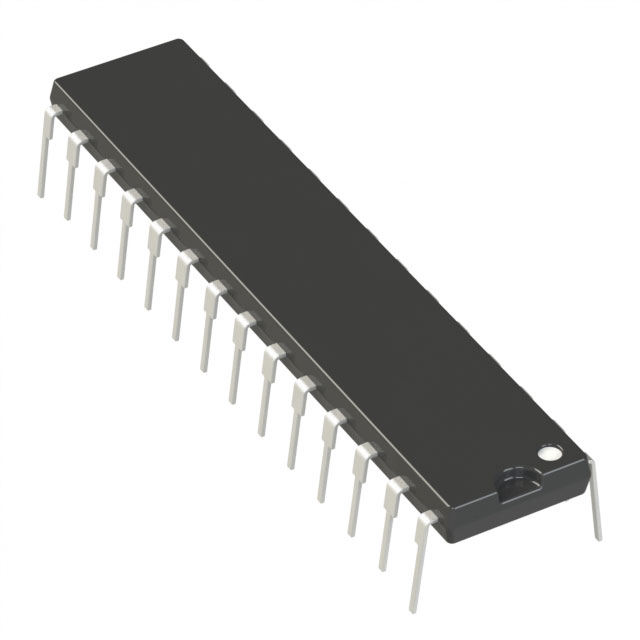

Package / Case		28-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Speed		30 MIPs
Program Memory Size		48KB (16K x 24)
RAM Size		2K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		1K x 8
Core Processor		dsPIC
Data Converters		A/D 6x10b
Core Size		16-Bit
Voltage - Supply (Vcc/Vdd)		2.5V ~ 5.5V
Connectivity		CANbus, I2C, SPI, UART/USART
Peripherals		Brown-out Detect/Reset, Motor Control PWM, QEI, POR, PWM, WDT
Supplier Device Package		28-SPDIP
Number of I/O		20
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		DSPIC30F4012-30I/SP
Datasheets		DSPIC30F Flash Programming Specification
Datasheets		dsPIC30F2010
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		Qualification Revision 06/Feb/2014
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		Packing Changes 10/Oct/2016

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
