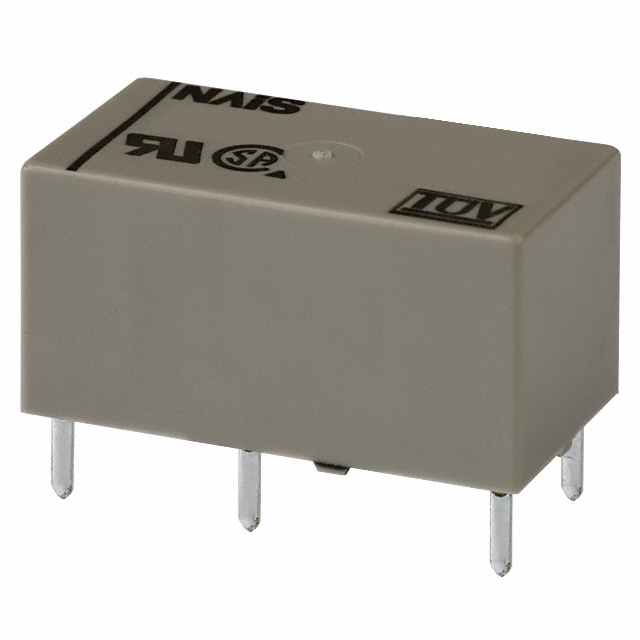

DSP1-L2-DC48V _ Power Relays, Over 2 Amps_Relays

Part Number	DSP1-L2-DC48V
Manufacturer	Panasonic Electric Works
Other Part Numbers	DSP1-L2-DC48V-ND
Description	RELAY GEN PURPOSE DPST 5A 48V
Detailed Description	General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 48VDC Coil Through Hole
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Panasonic Electric Works
Series		DSP
Packaging		Bulk
Part Status		Obsolete
Mounting Type		Through Hole
Coil Voltage		48VDC
Operating Temperature		-40°C ~ 65°C
Termination Style		PC Pin
Approval Agency		cURus, VDE
Relay Type		General Purpose
Coil Current		6.3 mA
Coil Type		Latching, Dual Coil
Seal Rating		Sealed - Fully
Contact Material		Silver Tin Oxide (AgSnO)
Contact Form		DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current)		5 A
Switching Voltage		250VAC, 125VDC - Max
Must Operate Voltage		38.4 VDC
Operate Time		10 ms
Release Time		5 ms
Load - Max Switching		1500VA, 625W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
