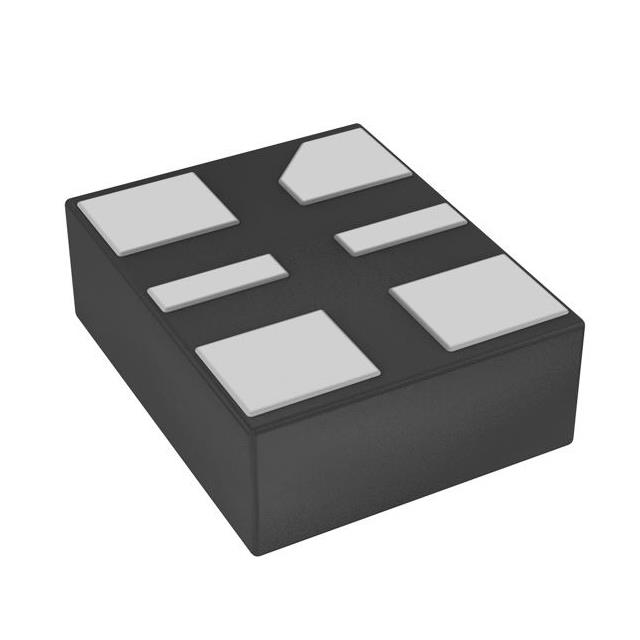

DSC1121DI5-012.8000T

DSC1121DI5-012.8000T

Part Number	DSC1121DI5-012.8000T
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	150-DSC1121DI5-012.8000T-ND 150-DSC1121DI5-012.8000T
Description	MEMS OSC XO LVCMOS SMD
Detailed Description	12.8 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Enable/Disable 6-VDFN
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Roving Networks (Microchip Technology)
Series		DSC1121
Packaging		Strip
Part Status		Active
Package / Case		6-VDFN
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±10ppm
Voltage - Supply		2.25V ~ 3.6V
Current - Supply (Max)		35mA
Current - Supply (Disable) (Max)		22mA
Height - Seated (Max)		0.035" (0.90mm)
Frequency		12.8 MHz
Base Resonator		MEMS

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DSC1121DI5-012.8000T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
