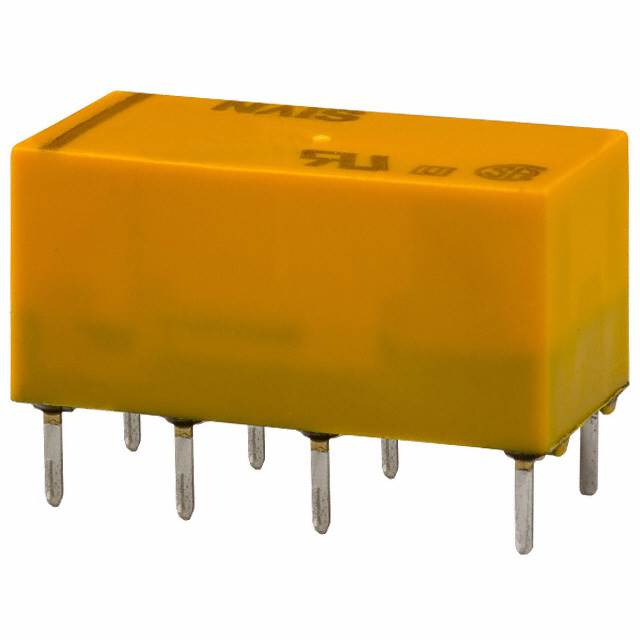

DS2Y-SL2-DC9V

Part Number
DS2Y-SL2-DC9V
Manufacturer Panasonic Electric Works
Other Part Numbers
DS2Y-SL2-DC9V-ND
DS2Y-SL2-DC9V-NDR
Description RELAY GENERAL PURPOSE DPDT 2A 9V
Detailed Description General Purpose Relay DPDT (2 Form C) Through Hole
Datasheet Datasheet

Product Attributes

Category
Manufacturer Panasonic Electric Works
Series
DS2Y
Packaging
Tube
Part Status Obsolete
Mounting Type Through Hole
Coil Voltage 9VDC
Operating Temperature -40°C ~ 70°C
Termination Style PC Pin
Approval Agency CSA, UR
Relay Type General Purpose
Coil Current 20 mA
Coil Type Latching, Dual Coil
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Must Operate Voltage 6.3 VDC
Operate Time 10 ms
Release Time 5 ms
Load - Max Switching 500VA, 440W

Documents & Media

RESOURCE TYPE LINK
Datasheets Relay Technical Info
Datasheets How to Read Date Codes

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.41.0020
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
