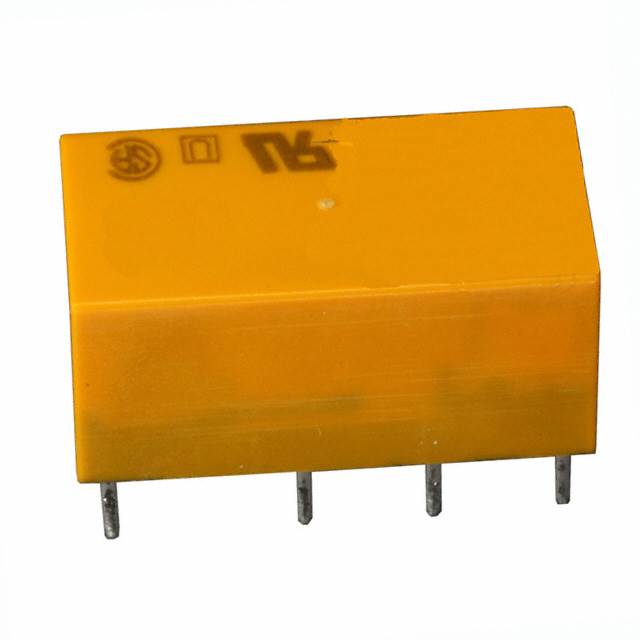

Part Number |
DS2E-SL-DC3V
|
---|---|
Manufacturer | Panasonic Electric Works |
Other Part Numbers |
DS2E-SL-DC3V-ND
|
Description | RELAY GENERAL PURPOSE DPDT 2A 3V |
Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Panasonic Electric Works | |
Series |
DS
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |
Mounting Type | Through Hole | |
Coil Voltage | 3VDC | |
Operating Temperature | -40°C ~ 70°C | |
Termination Style | PC Pin | |
Approval Agency | CSA, UR | |
Relay Type | General Purpose | |
Coil Current | 30 mA | |
Coil Type | Latching, Single Coil | |
Seal Rating | Sealed - Fully | |
Contact Material | Silver (Ag), Gold (Au) | |
Contact Form | DPDT (2 Form C) | |
Contact Rating (Current) | 2 A | |
Switching Voltage | 250VAC, 220VDC - Max | |
Must Operate Voltage | 2.1 VDC | |
Operate Time | 10 ms | |
Release Time | 5 ms | |
Load - Max Switching | 500VA, 440W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Standards Chart | |
Datasheets | Relay Technical Info | |
Datasheets | How to Read Date Codes | |
Datasheets | DS Latching May/2010 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.41.0020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected |
