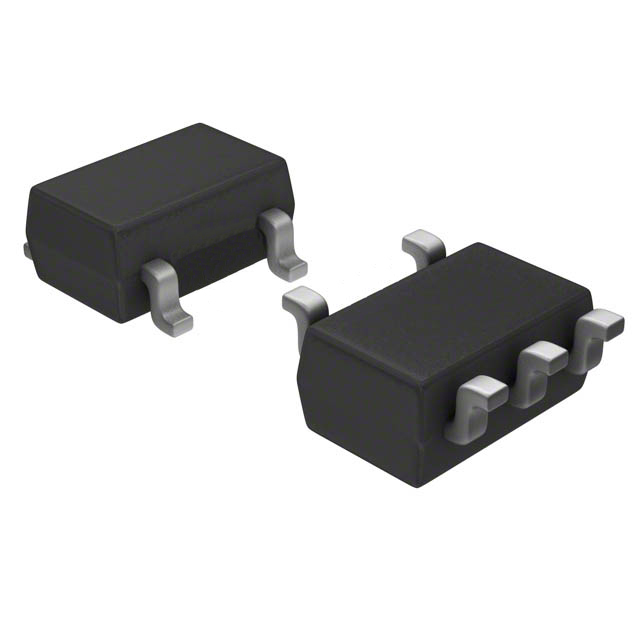

DS1775R+T&R

DS1775R+T&R

Part Number	DS1775R+T&R
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	DS1775R+T&RTR-ND DS1775R+T&RCT-ND DS1775R+T&RDKR-ND DS1775R+T&RCT DS1775R+T&R-ND DS1775R+T&RTR DS1775RTR DS1775R+T&RDKR
Description	SENSOR DIGITAL -55C-125C SOT23-5
Detailed Description	Temperature Sensor Digital, Local -55°C ~ 125°C 11 b SOT-23-5
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Temperature Sensors Analog and Digital Output
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Output Switch, Programmable Limit, Programmable Resolution, Shutdown Mode
Package / Case		SC-74A, SOT-753
Output Type		I2C
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		2.7V ~ 5.5V
Sensor Type		Digital, Local
Resolution		11 b
Supplier Device Package		SOT-23-5
Test Condition		-10°C ~ 85°C (-55°C ~ 125°C)
Accuracy - Highest (Lowest)		±2°C (±3°C)
Sensing Temperature - Local		-55°C ~ 125°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS1775R+T&R
Datasheets		Understanding Multidrop Address Assignments for Thermal Sensors
Datasheets		Thermal Management Handbook
Datasheets		Package Thermal Resistance Values (Theta JA, Theta JC) for Temperature Sensors and 1-Wire Devices
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration DS1775R+T&R
Datasheets		How to Select the Right Digital Temperature Sensor for Your Application

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 16504

Can ship immediately.
