DS1340C-3#

DS1340C-3#

Part Number	DS1340C-3#
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	505-DS1340C-3#-ND 175-DS1340C-3#-ND 505-DS1340C-3# 175-DS1340C-3# DS1340C-3#-ND
Description	IC RTC CLK/CALENDAR I2C 16SOIC
Detailed Description	Real Time Clock (RTC) IC Clock/Calendar I2C, 2-Wire Serial 16-SOIC (0.295", 7.50mm Width)
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Clock/Timing Real Time Clocks
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active
Features		Leap Year, Trickle-Charger

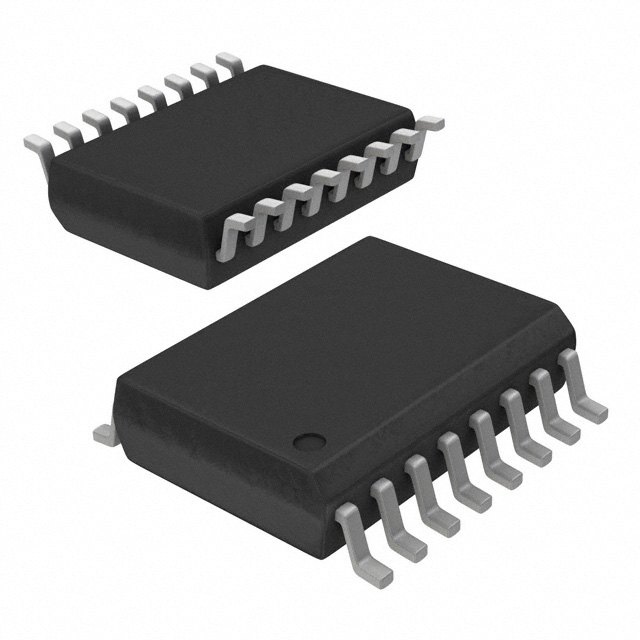

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Interface		I2C, 2-Wire Serial
Type		Clock/Calendar
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2.7V ~ 5.5V
Time Format		HH:MM:SS (24 hr)
Date Format		YY-MM-DD-dd
Supplier Device Package		16-SOIC
Voltage - Supply, Battery		1.3V ~ 3.7V
Current - Timekeeping (Max)		125µA @ 3.3V
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS1340C-3#
Datasheets		Tips for Writing Bulletproof Real-Time Clock Control Code
Datasheets		State Machine Logic in Binary-Coded Decimal (BCD)-Formatted Real-Time Clocks
Datasheets		Adding Intelligence to LED Lighting
Datasheets		Demonstrating Green Technology with Apples, Oranges, Lemons, and Limes
Datasheets		Oscillator Design Considerations for Low-Current Applications
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 414

Can ship immediately.
