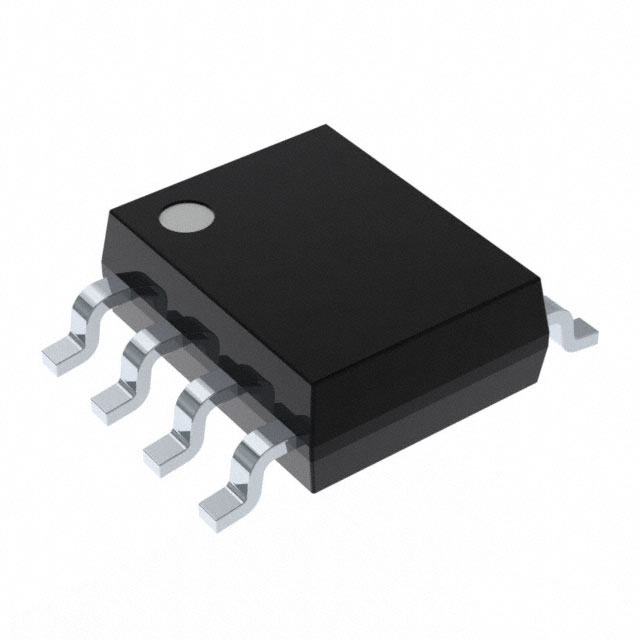

DS1135Z-8+

DS1135Z-8+

Part Number	DS1135Z-8+
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	DS1135Z-8+-ND DS1135Z8 -4941-DS1135Z-8+ 2156-DS1135Z-8+ MAXMAXDS1135Z-8+
Description	IC DELAY LINE 8NS 8SOIC
Detailed Description	Delay Line IC Multiple, NonProgrammable Tap 8ns 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Clock/Timing Delay Lines
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Function		Multiple, NonProgrammable
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.75V ~ 5.25V
Delay to 1st Tap		8ns
Number of Independent Delays		3
Available Total Delays		8ns
Supplier Device Package		8-SOIC

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS1135Z-8+
Datasheets		Decoupling Requirements for the DS1077/DS1085 EconOscillators
Datasheets		Material Declaration DS1135Z-8+
Datasheets		Maxim Integrated REACH
Datasheets		Maxim Integrated RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 90

Can ship immediately.
