Part Number |
DS1100Z-125+
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
DS1100Z-125+-ND
-4941-DS1100Z-125+
DS1100Z125
|

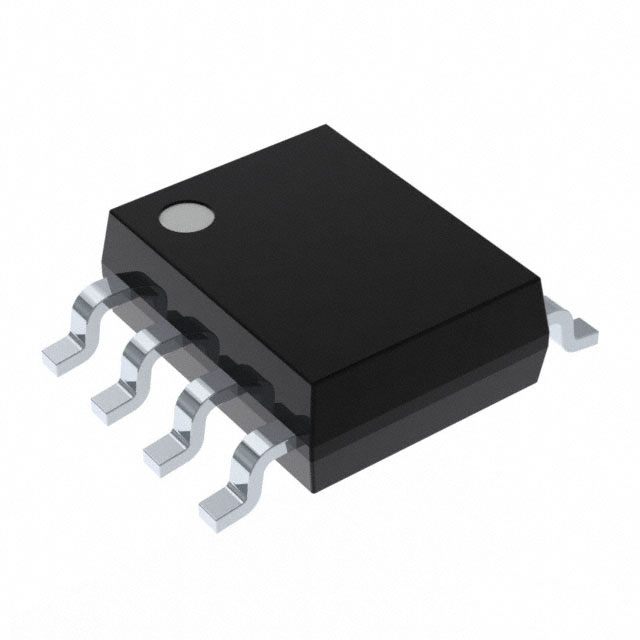

Description | IC DELAY LINE 5TAP 125NS 8SOIC |
Detailed Description | Delay Line IC Nonprogrammable 5 Tap 125ns 8-SOIC (0.154", 3.90mm Width) |
Manufacturer Standard Lead Time | 29 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series | ||
Packaging |
Tube
|
|
Part Status | Active | |
Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
Mounting Type | Surface Mount | |
Function | Nonprogrammable | |
Operating Temperature | -40°C ~ 85°C | |
Voltage - Supply | 4.75V ~ 5.25V | |
Number of Taps/Steps | 5 | |
Delay to 1st Tap | 25ns | |
Number of Independent Delays | 1 | |
Available Total Delays | 125ns | |
Tap Increment | 25 ns | |
Supplier Device Package | 8-SOIC |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DS1100Z-125+ | |
Datasheets | Decoupling Requirements for the DS1077/DS1085 EconOscillators | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | Material Declaration DS1100Z-125+ |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
