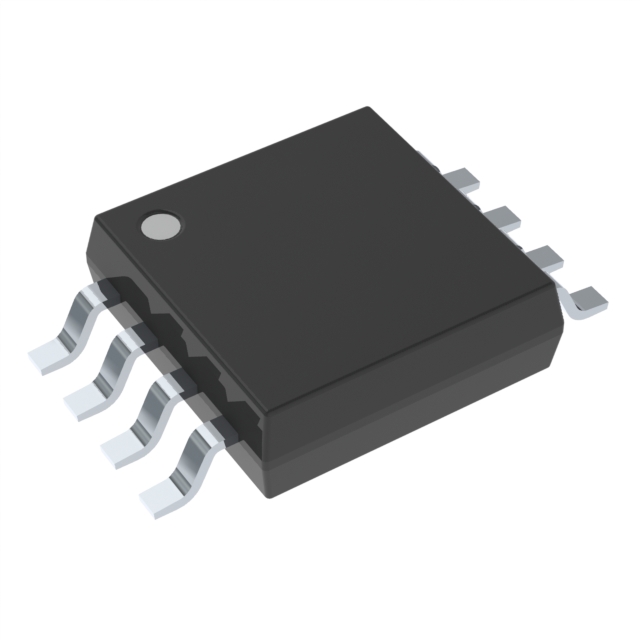

DS1100U-40+

DS1100U-40+

Part Number	DS1100U-40+
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	DS1100U-40+-ND -4941-DS1100U-40+ DS1100U-40+-CRL Q13592427
Description	IC DELAY LINE 5TAP 40NS 8UMAX
Detailed Description	Delay Line IC Nonprogrammable 5 Tap 40ns 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer Standard Lead Time	29 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Clock/Timing Delay Lines
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active
Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type		Surface Mount
Function		Nonprogrammable
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.75V ~ 5.25V
Number of Taps/Steps		5
Delay to 1st Tap		8ns
Number of Independent Delays		1
Available Total Delays		40ns
Tap Increment		8 ns
Supplier Device Package		8-uMAX/uSOP

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS1100U-40+
Datasheets		Decoupling Requirements for the DS1077/DS1085 EconOscillators
Datasheets		Material Declaration DS1100U-40+
Datasheets		Maxim Integrated REACH
Datasheets		Maxim Integrated RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 40

Can ship immediately.
