DS1090U-2+T _ Clock Generators, PLLs, Frequency Synthesizers_Clock/Timing_Integrated Circuits (ICs)

Part Number	DS1090U-2+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	DS1090U-2+TR-ND DS1090U-2+CT-ND DS1090U-2+DKR-ND DS1090U-2+TR DS1090U-2+DKR DS1090U-2+CT DS1090U-2+T-ND
Description	IC CLOCK GENERATOR 8UMAX
Detailed Description	Clock Generator IC 4MHz 1 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Clock/Timing Clock Generators, PLLs, Frequency Synthesizers
Manufacturer		Maxim Integrated / Analog Devices
Series		EconOscillator™
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

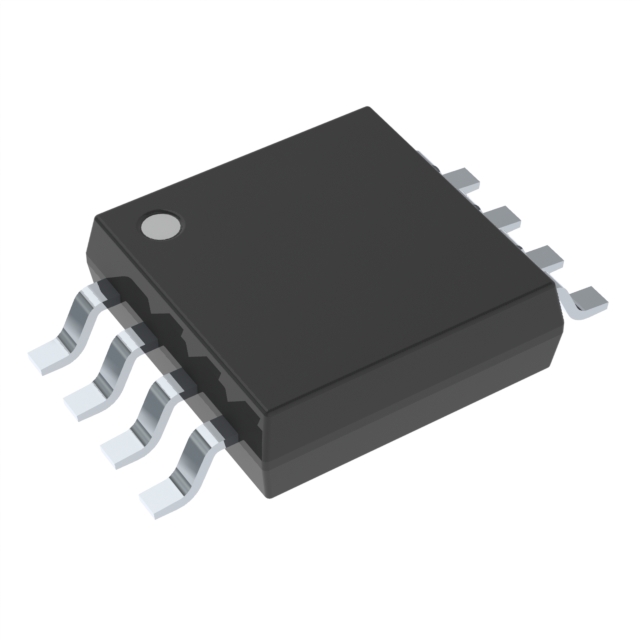

Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type		Surface Mount
Output		CMOS, TTL
Frequency - Max		4MHz
Type		Clock Generator
Input		Clock
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		3V ~ 5.5V
Ratio - Input:Output		1:1
Differential - Input:Output		No/No
Supplier Device Package		8-uMAX/uSOP
PLL		No
Divider/Multiplier		Yes/No
Number of Circuits		1
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		DS1090U-2+T
Datasheets		Automotive Product Guide
Datasheets		Reduce the Chances of Human Error: Part 2, Super Amps and Filters for Analog Interface
Datasheets		DC-DC Controllers Use Average-Current-Mode Control for Infotainment Applications
Datasheets		Frequency Calculator for the DS1090
Datasheets		Automotive Applications for Silicon Spread-Spectrum Oscillators
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration DS1090U-2+T

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
