Part Number |
DS1077Z-125+
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
DS1077Z-125+-ND
-4941-DS1077Z-125+
DS1077Z125
|
Description | IC OSC DUAL FX FREQ PROG 8SOIC |
Detailed Description | Oscillator, Fixed Frequency (Dual) IC 15.2kHz ~ 125MHz 8-SOIC |
Manufacturer Standard Lead Time | 32 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series |
EconOscillator™
|
|
Packaging |
Tube
|
|
Part Status | Active | |

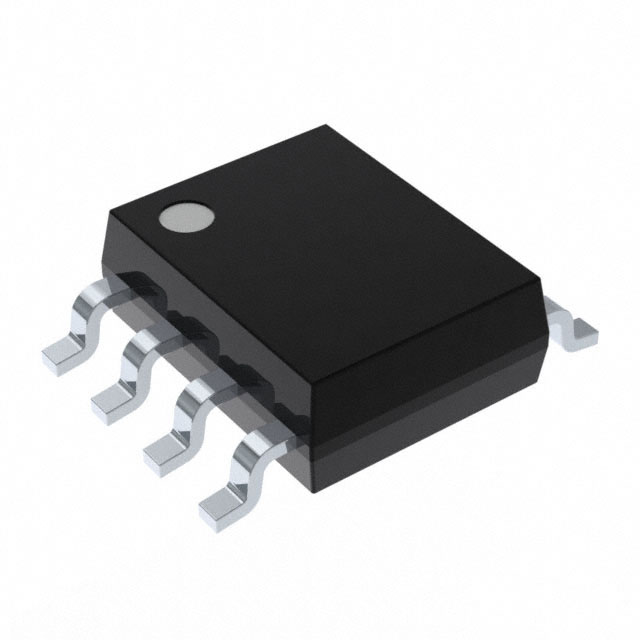

Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
Mounting Type | Surface Mount | |
Frequency | 15.2kHz ~ 125MHz | |
Type | Oscillator, Fixed Frequency (Dual) | |
Operating Temperature | -40°C ~ 85°C | |
Voltage - Supply | 4.75V ~ 5.25V | |
Supplier Device Package | 8-SOIC | |
Current - Supply | 50 mA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DS1077Z-125+ | |
Datasheets | Adding Windows NT/2000/XP Support to the AN3315 Parallel-Port 2-Wire Software | |
Datasheets | Writing Parallel-Port 2-Wire Software in C | |
Datasheets | Microcontroller Clock-Crystal, Resonator, RC Oscillator, or Silicon Oscillator? | |
Datasheets | Decoupling Requirements for the DS1077/DS1085 EconOscillators | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | Material Declaration DS1077Z-125+ |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
