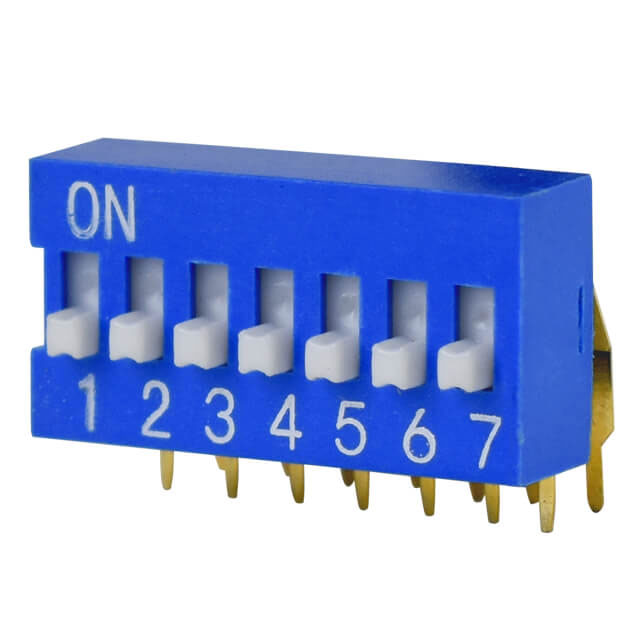

DS03-254-07BE

DS03-254-07BE

Part Number	DS03-254-07BE
Manufacturer	CUI Devices
Other Part Numbers	2223-DS03-254-07BE-ND 2223-DS03-254-07BE
Description	SWITCH SLIDE DIP SPST 0.025A 24V
Detailed Description	Dip Switch SPST 7 Position Through Hole, Right Angle Slide (Standard) Actuator 25mA 24VDC
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		CUI Devices
Series		DS03-254
Packaging		Tube
Part Status		Active
Contact Finish		Gold
Voltage Rating		24VDC
Current Rating (Amps)		25mA
Mounting Type		Through Hole, Right Angle
Pitch		0.100" (2.54mm), Full
Circuit		SPST
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Actuator Type		Slide (Standard)
Height Above Board		0.390" (9.90mm)
Actuator Level		Raised
Washable		No
Contact Material		Copper Alloy
Number of Positions		7

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS03-254-07BE
Video File		DIP Switches 101
Environmental Information		DS03-254 Series RoHS
Featured Product		DIP Switches
Featured Product		Slide DIP Switches
Featured Product		Switch Solutions
HTML Datasheet		DS03-254 Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 63

Can ship immediately.
