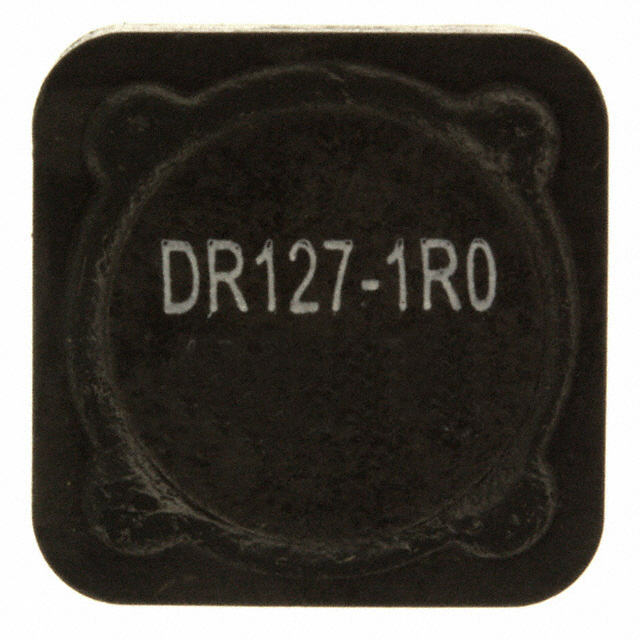

DR127-1R0-R

DR127-1R0-R

Part Number	DR127-1R0-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	513-1218-2-ND 513-1218-1-ND 513-1218-6-ND 513-1218-6 Q2765742 2266-DR127-1R0-R 513-1218-2 513-1218-1 DR1271R0R
Description	FIXED IND 1UH 15.5A 3.13MOHM SMD
Detailed Description	1 µH Shielded Drum Core, Wirewound Inductor 15.5 A 3.13mOhm Nonstandard
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		PowerStor (Eaton)
Series		DR
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		3.13mOhm
Current - Saturation (Isat)		40A
Material - Core		Ferrite
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.315" (8.00mm)
Inductance		1 µH
Current Rating (Amps)		15.5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DR127-1R0-R
Datasheets		DR127 Series Spice Data
Datasheets		Shipping Box and Labels 05/Jan/2018
Datasheets		DR127 Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 739

Can ship immediately.
