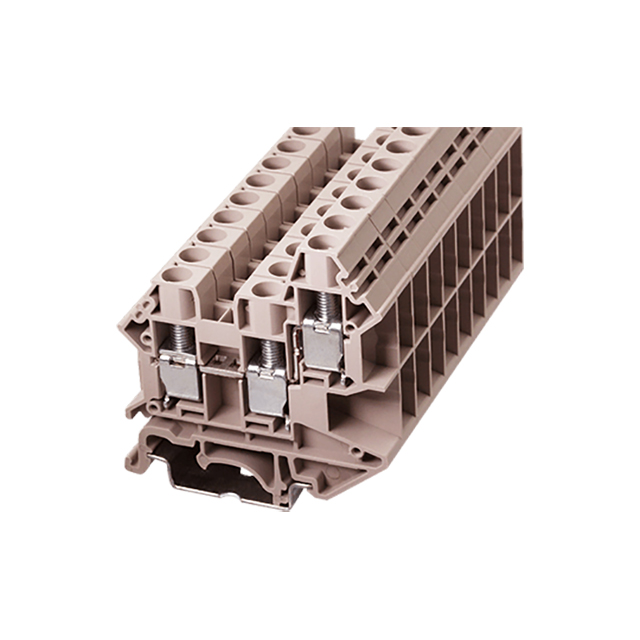

DK6N-TN _ Din Rail, Channel_Terminal Blocks_Connectors, Interconnects

Part Number	DK6N-TN
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-DK6N-TN-ND 2861-DK6N-TN
Description	SCREW TERM BLK FEED THROUGH 20~8
Detailed Description	Terminal Block Connector 3 Position Feed Through Gray 8-20 AWG
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Din Rail, Channel
Manufacturer		DINKLE Corporation USA
Series		DKN
Packaging		Box
Part Status		Active
Color		Gray
Type		Feed Through
Termination Style		Screw
Material - Insulation		Polyamide (PA), Nylon
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		8.0mm
Voltage - IEC		1000V
Voltage - UL		600V
Wire Gauge or Range - AWG		8-20 AWG
Wire Gauge or Range - mm²		0.5-6mm²
Stripping Length		12mm ~ 14mm
Current - UL		50 A
Current - IEC		41 A
Number of Positions		3

RESOURCE TYPE		LINK
Datasheets		DK6N-TN

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
