DH252NBSYGN _ Pushbutton Switches_Switches

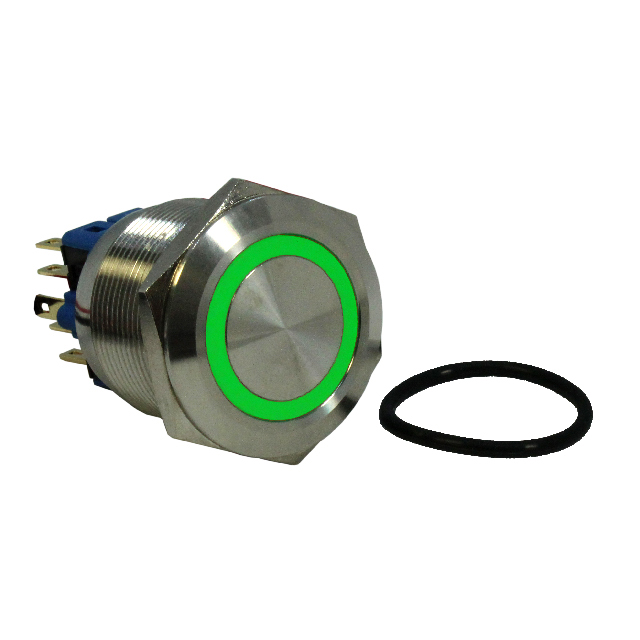

Part Number	DH252NBSYGN
Manufacturer	CIT Relay and Switch
Other Part Numbers	2449-DH252NBSYGN-ND 2449-DH252NBSYGN
Description	SWITCH PB 4PST-2NO/2NC 2A 125V
Detailed Description	Pushbutton Switch 4PST-2NO/2NC Illuminated Panel Mount, Front
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		CIT Relay and Switch
Series		DH
Packaging		Tray
Part Status		Active
Current Rating (Amps)		2A (AC/DC)
Mounting Type		Panel Mount, Front
Circuit		4PST-2NO/2NC
Type		Illuminated
Switch Function		On-Mom, Off-Mom
Operating Temperature		-25°C ~ 70°C
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		LED, Green/Yellow
Actuator Type		Rectangular, Button, Flush
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Circular - 25.00mm Dia
Color - Actuator/Cap		Silver
Actuator Marking		No Marking
Voltage Rating - AC		125 V
Voltage Rating - DC		24 V

RESOURCE TYPE		LINK
Datasheets		DH252NBSYGN

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
