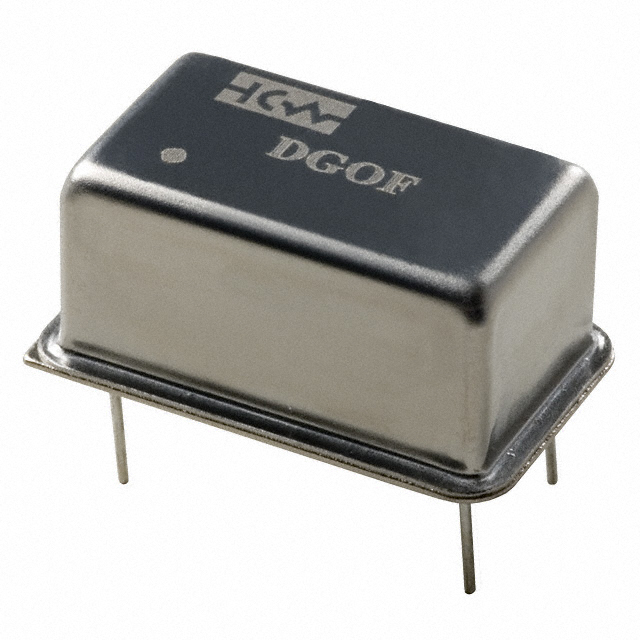

DGOF5S3-020.0M

DGOF5S3-020.0M

Part Number	DGOF5S3-020.0M
Manufacturer	Connor Winfield
Other Part Numbers	CW633-ND CW633 DGOF5S3020.0M DGOF5S3-20.0M DGOF5S320.0M DGOF5S3 20.0M
Description	XTAL OSC OCXO 20.0000MHZ HCM TTL
Detailed Description	20 MHz OCXO HCMOS, TTL Oscillator 5V 14-DIP, 4 Leads (Full Size, Metal Can)
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Connor Winfield
Series		DGOF
Packaging		Bulk
Part Status		Active
Package / Case		14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension		0.815" L x 0.510" W (20.70mm x 12.95mm)
Mounting Type		Through Hole
Output		HCMOS, TTL
Type		OCXO
Operating Temperature		0°C ~ 70°C
Frequency Stability		±250ppb
Voltage - Supply		5V
Current - Supply (Max)		300mA
Height - Seated (Max)		0.400" (10.16mm)
Frequency		20 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DGOF5S3-020.0M

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 41

Can ship immediately.
