DG409DYZ _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	DG409DYZ
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	DG409DYZ-ND Q4566453IN DG409DYZ-CRL
Description	IC SWITCH SP4T X 2 100OHM 16SOIC
Detailed Description	2 Circuit IC Switch 4:1 100Ohm 16-SOIC
Manufacturer Standard Lead Time	36 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series
Packaging		Tube
Part Status		Active

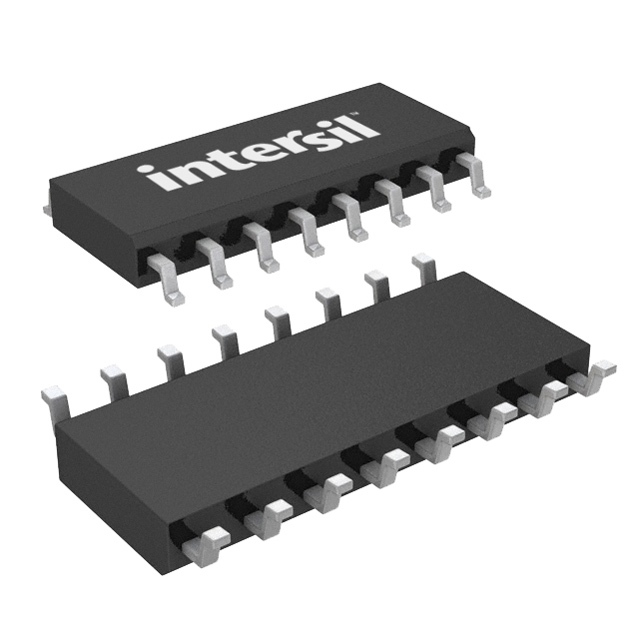

Package / Case		16-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		100Ohm
Supplier Device Package		16-SOIC
Voltage - Supply, Single (V+)		5V ~ 34V
Voltage - Supply, Dual (V±)		±5V ~ 20V
Charge Injection		20pC
Switch Circuit		SP4T
Multiplexer/Demultiplexer Circuit		4:1
Channel-to-Channel Matching (ΔRon)		15Ohm (Max)
Switch Time (Ton, Toff) (Max)		150ns, 150ns
Channel Capacitance (CS(off), CD(off))		3pF, 14pF
Current - Leakage (IS(off)) (Max)		500pA
Number of Circuits		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
