DG406EWI+ _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	DG406EWI+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	DG406EWI+-ND -4941-DG406EWI+
Description	IC MUX 16:1 100OHM 28SOIC
Detailed Description	1 Circuit IC Switch 16:1 100Ohm 28-SOIC
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

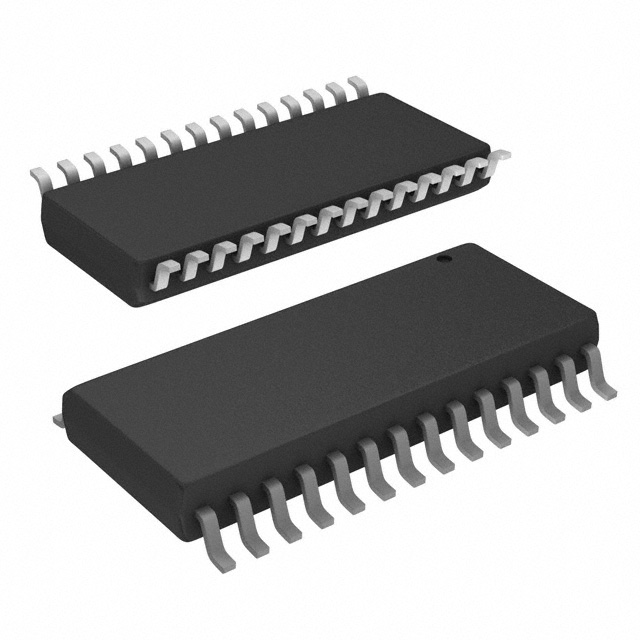

Package / Case		28-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		100Ohm
Supplier Device Package		28-SOIC
Voltage - Supply, Single (V+)		5V ~ 30V
Voltage - Supply, Dual (V±)		±4.5V ~ 20V
Charge Injection		2pC
Crosstalk		-92dB @ 100kHz
Multiplexer/Demultiplexer Circuit		16:1
Channel-to-Channel Matching (ΔRon)		1.5Ohm
Switch Time (Ton, Toff) (Max)		200ns, 150ns
Channel Capacitance (CS(off), CD(off))		8pF, 130pF
Current - Leakage (IS(off)) (Max)		500pA
Number of Circuits		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
