DG403DYZ-T _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	DG403DYZ-T
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	20-DG403DYZ-TTR-ND 20-DG403DYZ-TCT-ND 20-DG403DYZ-TDKR-ND DG403DYZ-T-ND 20-DG403DYZ-TTR 20-DG403DYZ-TCT 20-DG403DYZ-TDKR
Description	IC SWITCH SPDT X 2 45OHM 16SOIC
Detailed Description	2 Circuit IC Switch 2:1 45Ohm 16-SOIC
Manufacturer Standard Lead Time	36 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

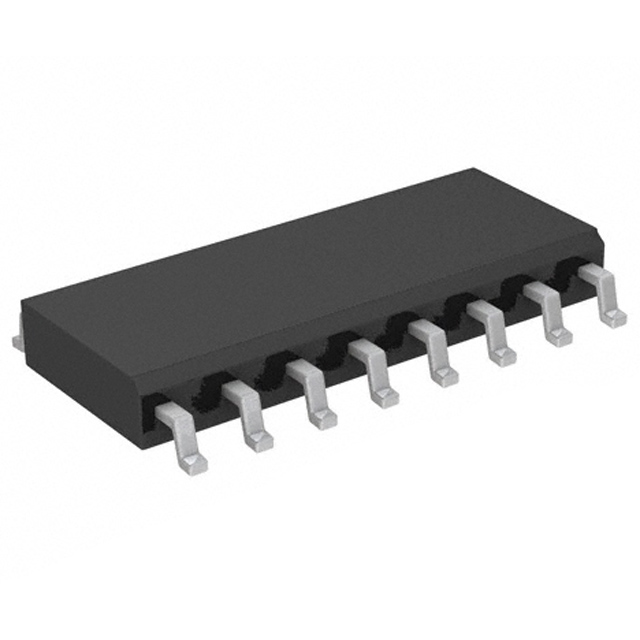

Package / Case		16-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		45Ohm
Supplier Device Package		16-SOIC
Voltage - Supply, Single (V+)		5V ~ 34V
Voltage - Supply, Dual (V±)		±5V ~ 17V
Charge Injection		60pC
Crosstalk		-90dB @ 1MHz
Switch Circuit		SPDT
Multiplexer/Demultiplexer Circuit		2:1
Channel-to-Channel Matching (ΔRon)		3Ohm
Switch Time (Ton, Toff) (Max)		150ns, 100ns
Channel Capacitance (CS(off), CD(off))		12pF, 12pF
Current - Leakage (IS(off)) (Max)		500pA
Number of Circuits		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
