DG2535DN-T1-E4 _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Vishay / Siliconix
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

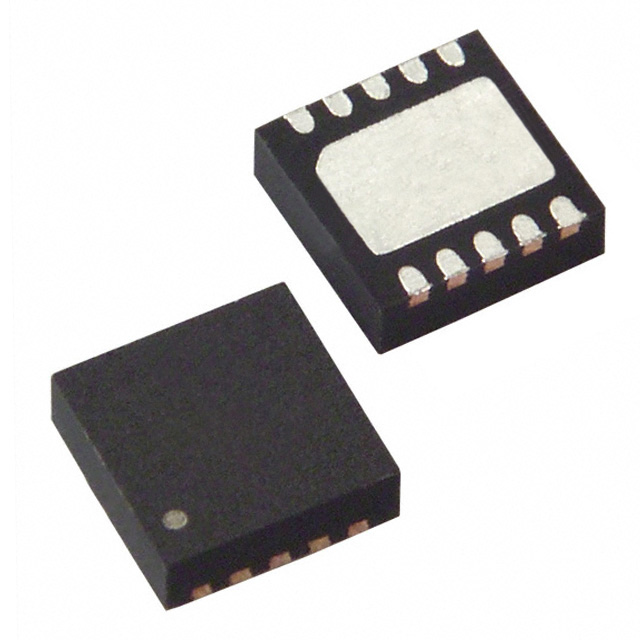

Package / Case		10-VFDFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		500mOhm
Supplier Device Package		10-DFN (3x3)
Voltage - Supply, Single (V+)		3V
Charge Injection		21pC
Crosstalk		-69dB @ 100kHz
Switch Circuit		SPDT
Multiplexer/Demultiplexer Circuit		2:1
Channel-to-Channel Matching (ΔRon)		50mOhm (Max)
Switch Time (Ton, Toff) (Max)		82ns, 73ns
Channel Capacitance (CS(off), CD(off))		145pF
Current - Leakage (IS(off)) (Max)		1nA
Number of Circuits		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
