DG06S0512A _ DC DC Converters_Power Supplies

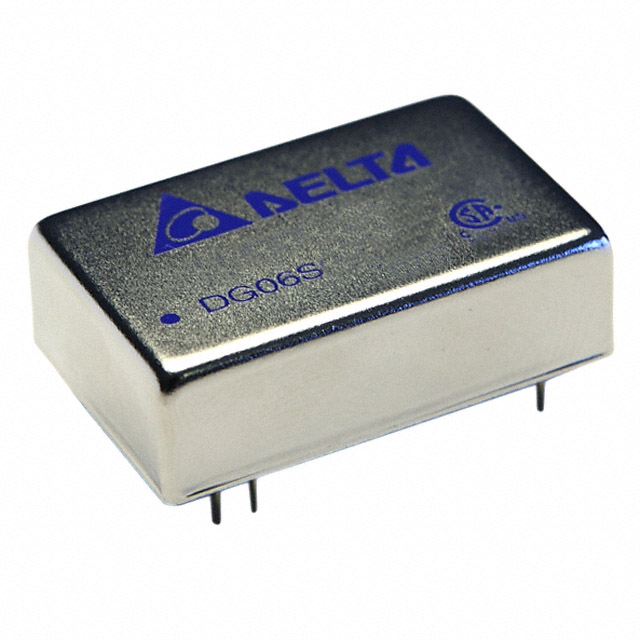

Part Number	DG06S0512A
Manufacturer	Delta Electronics / Fans
Other Part Numbers	941-1505-ND 941-1505
Description	DC DC CONVERTER 12V 6W
Detailed Description	Isolated Module DC DC Converter 1 Output 12V 500mA 4.5V - 7V Input

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Delta Electronics / Fans
Series		DG06S/D (6W)
Packaging		Tube
Part Status		Not For New Designs
Features		OCP, SCP, UVLO
Package / Case		24-DIP Module, 8 Leads
Size / Dimension		1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 71°C
Applications		Medical
Voltage - Input (Max)		7V
Efficiency		82%
Current - Output (Max)		500mA
Voltage - Input (Min)		4.5V
Voltage - Output 1		12V
Power (Watts)		6 W
Number of Outputs		1
Voltage - Isolation		1.5 kV

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
