DF19G-20S-1F(05) _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

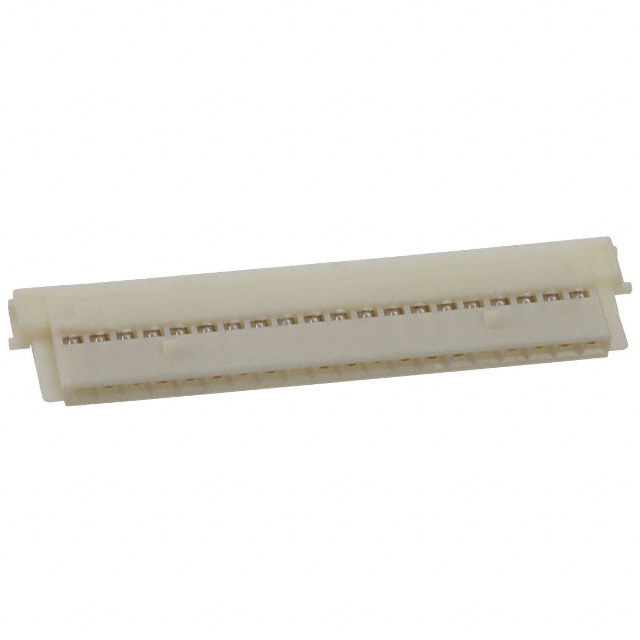

Part Number	DF19G-20S-1F(05)
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	H10761-ND DF19G20S1F05 *DF19G-20S-1F(05) 685-0009-4-05 H10761
Description	CONN FPC RCPT 20POS 1MM
Detailed Description	20 Position FPC Connector Receptacle 0.039" (1.00mm) Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Hirose Electric Co., Ltd.
Series		DF19
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Voltage Rating		100V
Current Rating (Amps)		0.5A
Mounting Type		Free Hanging (In-Line)
Number of Positions		20
Pitch		0.039" (1.00mm)
Operating Temperature		-35°C ~ 85°C
Termination		IDC
Contact Finish Thickness		3.94µin (0.10µm)
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.14mm
Housing Material		Polyamide (PA), Nylon
Cable End Type		Tapered
Housing Color		Beige
Flat Flex Type		FPC
Connector/Contact Type		Receptacle

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
