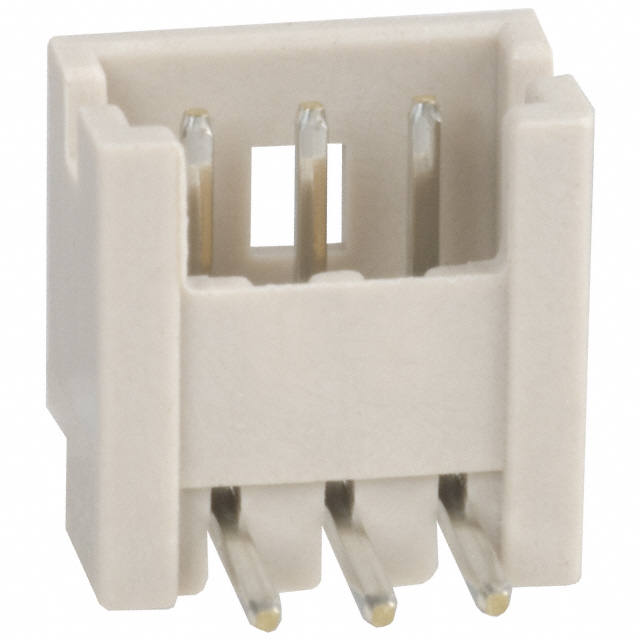

DF13-3P-1.25DS(20) _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	DF13-3P-1.25DS(20)
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	H2260-ND DF13-3P-1.25DS20 536-0152-0-20 *DF13-3P-1.25DS(20) DF133P125DS20 DF13-3P-1.25DS H2260
Description	CONN HEADER R/A 3POS 1.25MM
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.049" (1.25mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Hirose Electric Co., Ltd.
Series		DF13
Packaging		Tube
Part Status		Obsolete
Connector Type		Header
Voltage Rating		150V
Current Rating (Amps)		1A
Mounting Type		Through Hole, Right Angle
Number of Positions		3
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-35°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Detent Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Beige
Pitch - Mating		0.049" (1.25mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		39.4µin (1.00µm)
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.091" (2.30mm)
Insulation Height		0.142" (3.60mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA), Nylon

RESOURCE TYPE		LINK
Datasheets		End of Life 09/FEB/2022

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
