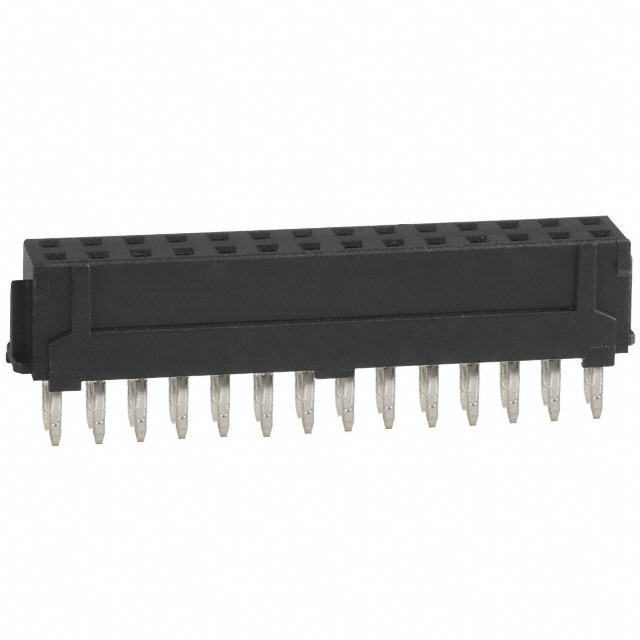

DF11-28DS-2DSA _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	DF11-28DS-2DSA
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	H2266-ND *DF11-28DS-2DSA H2266
Description	CONN RCPT 28POS 0.079 TIN PCB
Detailed Description	28 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Hirose Electric Co., Ltd.
Series		DF11
Packaging		Bulk
Part Status		Obsolete
Connector Type		Receptacle
Voltage Rating		250V
Current Rating (Amps)		2A
Mounting Type		Through Hole
Number of Positions		28
Style		Board to Board or Cable
Operating Temperature		-30°C ~ 85°C
Applications		General Purpose
Contact Type		Female Socket
Fastening Type		Friction Lock
Number of Positions Loaded		All
Termination		Press-Fit, Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Mated Stacking Heights		7.8mm, 8.45mm
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Tin
Contact Shape		Square
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.244" (6.20mm)
Insulation Material		Polyamide (PA), Nylon
Row Spacing - Mating		0.079" (2.00mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		DF11-28DS-2DSA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
