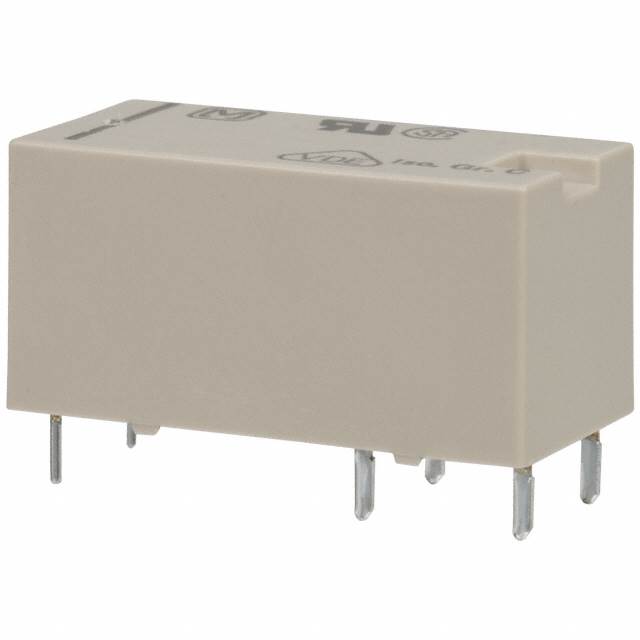

Part Number |
DE1A1B-L-24V
|
---|---|
Manufacturer | Panasonic Electric Works |
Other Part Numbers |
DE1A1B-L-24V-ND
|
Description | RELAY GEN PURPOSE DPST 8A 24V |
Detailed Description | General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Panasonic Electric Works | |
Series |
DE
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |
Mounting Type | Through Hole | |
Coil Voltage | 24VDC | |
Operating Temperature | -40°C ~ 70°C | |
Termination Style | PC Pin | |
Approval Agency | CSA, UR, VDE | |
Relay Type | General Purpose | |
Coil Current | 4.2 mA | |
Coil Type | Latching, Single Coil | |
Contact Material | Silver Tin Oxide (AgSnO) | |
Contact Form | DPST-NO/NC (1 Form A, 1 Form B) | |
Contact Rating (Current) | 8 A | |
Switching Voltage | 250VAC, 30VDC - Max | |
Must Operate Voltage | 16.8 VDC | |
Operate Time | 10 ms | |
Release Time | 5 ms | |
Load - Max Switching | 2500VA, 300W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | How to Read Date Codes | |
Datasheets | Standards Chart | |
Datasheets | DK OBS NOTICE |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.41.0020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS Compliant |
