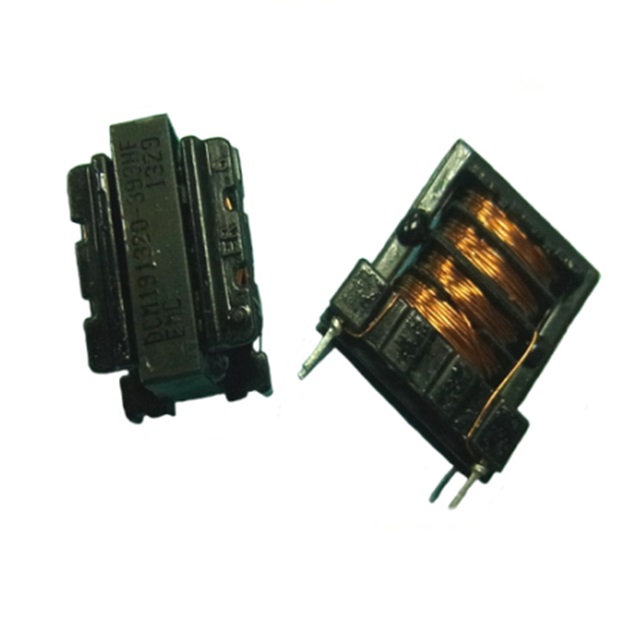

DCM191320V-352NHF

DCM191320V-352NHF

Part Number	DCM191320V-352NHF
Manufacturer	ITG Electronics, Inc.
Other Part Numbers	3013-DCM191320V-352NHF-ND 3013-DCM191320V-352NHF
Description	3,500uH, 230mOhm, 1.8Amp DIP CMC
Detailed Description	3.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.8A DCR 230mOhm
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		ITG Electronics, Inc.
Series		DCM191320V
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		0.728" L x 0.512" W (18.50mm x 13.00mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-55°C ~ 130°C
Height (Max)		0.787" (20.00mm)
Current Rating (Max)		1.8A
DC Resistance (DCR) (Max)		230mOhm
Inductance @ Frequency		3.5 mH @ 10 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DCM191320V-352NHF

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
