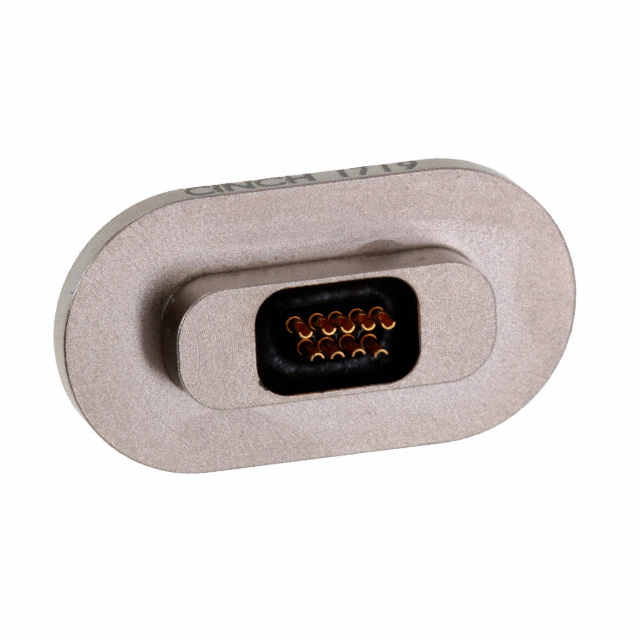

DCDH-9PSBN _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	DCDH-9PSBN
Manufacturer	Vitelec / Cinch Connectivity Solutions
Other Part Numbers	116-1081-ND 116-1081 DN000090000900N 3937-DCDH-9PSBN
Description	CONN MICRO-D PLUG 9POS PNL MNT
Detailed Description	9 Position D-Type, Micro-D Plug, Male Pins Connector
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		Vitelec / Cinch Connectivity Solutions
Series		Dura-Con™
Packaging		-
Part Status		Active
Connector Type		Plug, Male Pins
Contact Finish		Gold
Current Rating (Amps)		3A
Mounting Type		Panel Mount
Number of Positions		9
Number of Rows		2
Operating Temperature		-55°C ~ 125°C
Contact Type		Signal
Flange Feature		Housing/Shell (4-40)
Termination		Solder Cup
Ingress Protection		Harsh Environment
Connector Style		D-Type, Micro-D
Contact Finish Thickness		50.0µin (1.27µm)
Material Flammability Rating		UL94 V-0
Dielectric Material		Diallyl Phthalate (DAP), Glass Filled
Shell Material, Finish		Aluminum Alloy, Nickel Plated, Electroless
Contact Material		Copper Alloy
Contact Form		Machined

RESOURCE TYPE		LINK
Datasheets		DCDH-9PSBN
Datasheets		Hermetic Connector Brochure

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

Can ship immediately.
