Part Number |
DC5305S
|
---|---|
Manufacturer | Stanley Electric |
Other Part Numbers |
404-1100-ND
404-1100
|

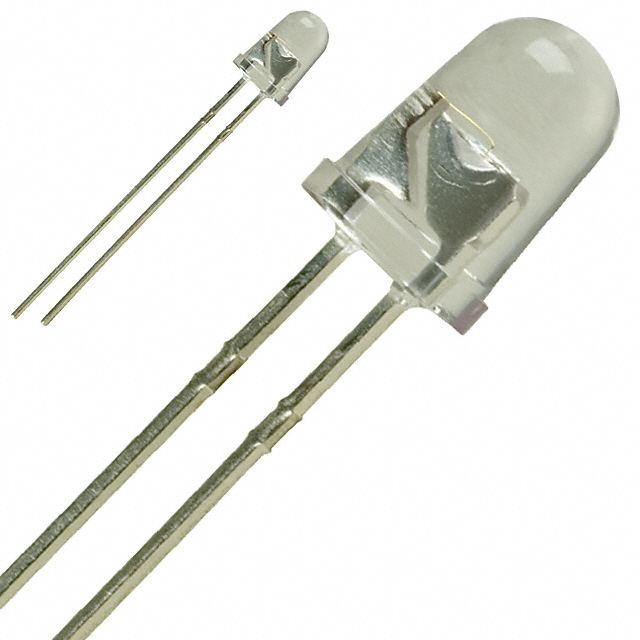

Description | LED BLUE-GRN CLEAR 5MM ROUND T/H |
Detailed Description | Blue-Green 505nm LED Indication - Discrete 3.5V Radial |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Stanley Electric | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Package / Case | Radial | |
Color | Blue-Green | |
Mounting Type | Through Hole | |
Millicandela Rating | 800mcd | |
Configuration | Standard | |
Voltage - Forward (Vf) (Typ) | 3.5V | |
Lens Color | Colorless | |
Current - Test | 20mA | |
Viewing Angle | 30° | |
Height (Max) | 7.80mm | |
Wavelength - Peak | 502nm | |
Wavelength - Dominant | 505nm | |
Supplier Device Package | 5mm Round | |
Lens Transparency | Clear | |
Lens Style | Round with Domed Top | |
Lens Size | 5mm, T-1 3/4 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DC5305S |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.41.0000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected |
