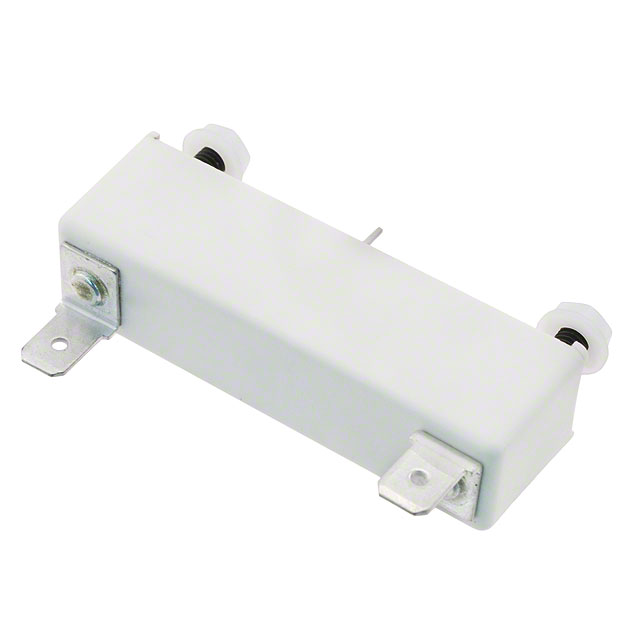

DBR70510S

DBR70510S

Part Number	DBR70510S
Manufacturer	Sensata Technologies – Cynergy3
Other Part Numbers	DBR70510S-ND
Description	RELAY REED SPST-NC 3A 5V
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Relays Reed Relays
Manufacturer		Sensata Technologies – Cynergy3
Series		DB
Packaging		Tray
Part Status		Active
Mounting Type		Chassis Mount
Coil Voltage		5VDC
Operating Temperature		-20°C ~ 70°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Coil Current		132 mA
Coil Type		Non Latching
Contact Material		Rhodium (Rh)
Contact Form		SPST-NC (1 Form B)
Contact Rating (Current)		3 A
Switching Voltage		1000VAC, 1000VDC - Max
Must Release Voltage		0.5 VDC
Must Operate Voltage		3.7 VDC
Operate Time		2 ms
Release Time		3 ms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DBR70510S

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
