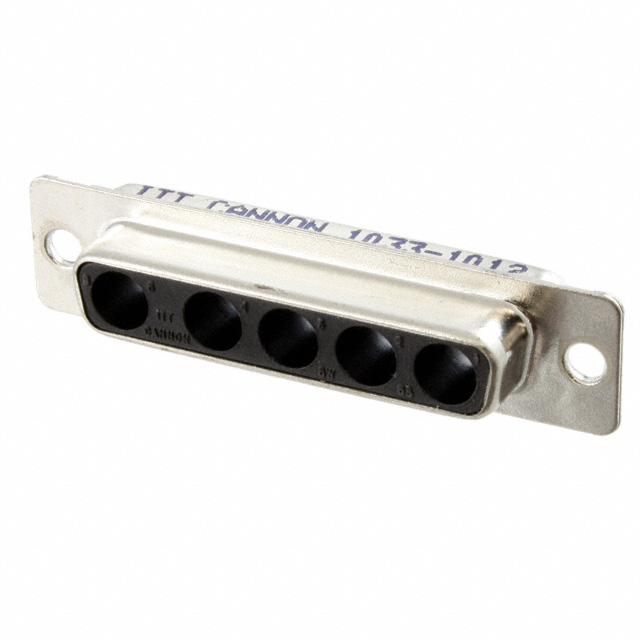

DBM-5W5S-A197

DBM-5W5S-A197

Part Number	DBM-5W5S-A197
Manufacturer	VEAM (ITT Cannon)
Other Part Numbers	1003-1069-ND DBM5W5SA197PG-ND DBM5W5SA197PG 535131602 1003-1069 053513-1602 DBM5W5SA197
Description	CONN D-SUB HOUSING RCPT 5POS
Detailed Description	Receptacle for Female Contacts Housing D-Sub, Combo Connector 5 (Coax or Power) Position
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Housings
Manufacturer		VEAM (ITT Cannon)
Series		Combo D®, D*M
Packaging		Bulk
Part Status		Active
Features		Shielded
Connector Type		Receptacle for Female Contacts
Color		Black
Mounting Type		Panel Mount
Number of Positions		5 (Coax or Power)
Operating Temperature		-55°C ~ 125°C
Contact Type		Coax or Power
Flange Feature		Housing/Shell (Unthreaded)
Connector Style		D-Sub, Combo
Dielectric Material		Polycyclohexylenedimethylene Terephthalate (PCT)
Shell Material, Finish		Steel, Tin Plated
Note		Contacts Not Included
Shell Size, Connector Layout		3 (DB, B) - 5W5
Number of Rows		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DBM-5W5S-A197

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant

In Stock: 281

Can ship immediately.
