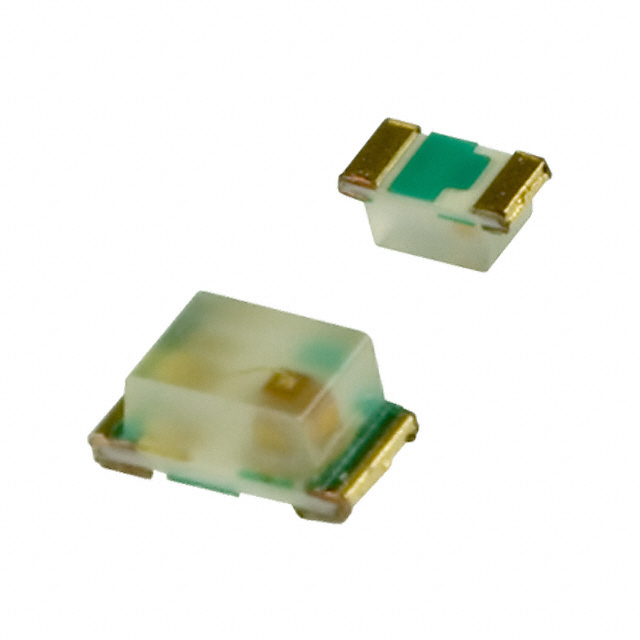

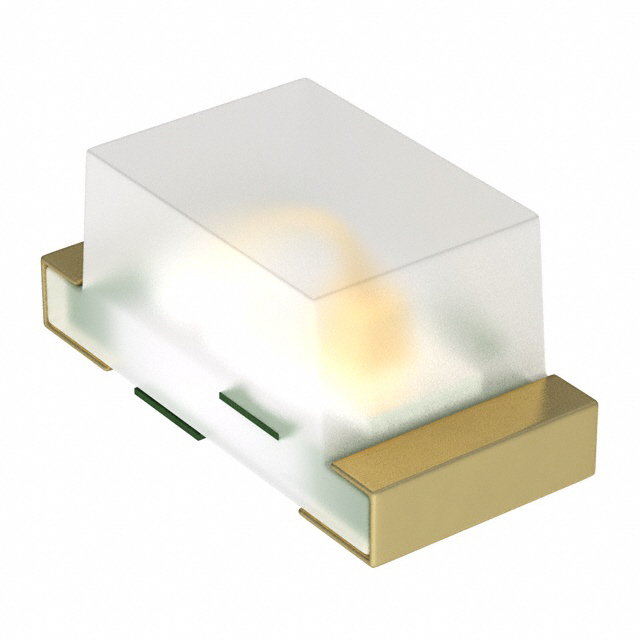

DB1111C-TR

Part Number
DB1111C-TR
Manufacturer Stanley Electric
Other Part Numbers
404-1011-2-ND
DB1111CTR
404-1011-1
404-1011-2
Description LED BLUE DIFFUSED SMD
Detailed Description Blue 470nm LED Indication - Discrete 3.3V 0603 (1608 Metric)

Product Attributes

Category
Manufacturer Stanley Electric
Series
1111C
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 0603 (1608 Metric)
Color Blue
Size / Dimension 1.60mm L x 0.80mm W
Mounting Type Surface Mount
Millicandela Rating 14mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.3V
Lens Color White
Current - Test 10mA
Viewing Angle 130°
Height (Max) 0.80mm
Wavelength - Peak 467nm
Wavelength - Dominant 470nm
Supplier Device Package SMD
Lens Transparency Diffused
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
