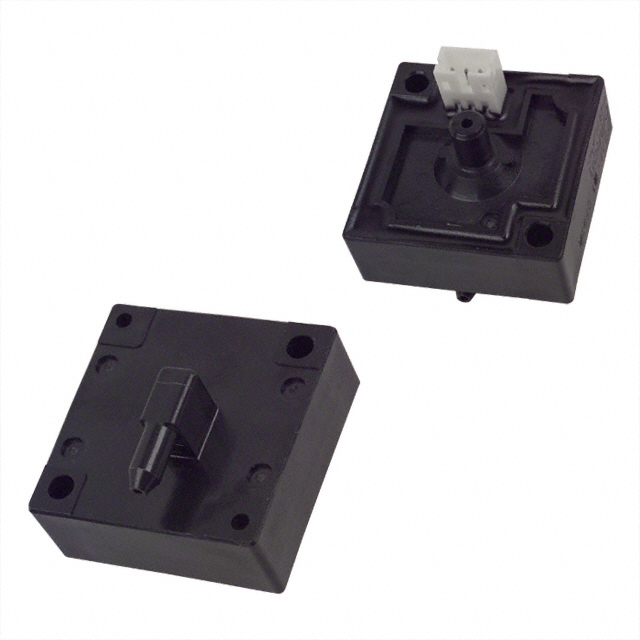

Part Number |
D8M-R1
|
---|---|
Manufacturer | Omron Electronic Components |
Other Part Numbers |
Z2017-ND
D8MR1
Z2017
|
Description | SENSOR 0.03PSIG 0.16" |
Detailed Description | Pressure Sensor 0.03PSI (0.2kPa) Vented Gauge Male - 0.16" (4.06mm) Tube Module |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Omron Electronic Components | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Package / Case | Module | |
Output Type | Frequency | |
Operating Pressure | 0.03PSI (0.2kPa) | |
Pressure Type | Vented Gauge | |
Accuracy | ±2% | |
Operating Temperature | -20°C ~ 70°C | |
Termination Style | Cable | |
Voltage - Supply | 4.2V ~ 5.5V | |
Port Size | Male - 0.16" (4.06mm) Tube | |
Applications | Board Mount | |
Port Style | Barbless | |
Maximum Pressure | 0.44PSI (3kPa) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | D8M-R1 | |
Datasheets | How to Read Date Codes | |
Datasheets | End of Life 16/FEB/2021 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 9026.20.4000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | RoHS Compliant |
