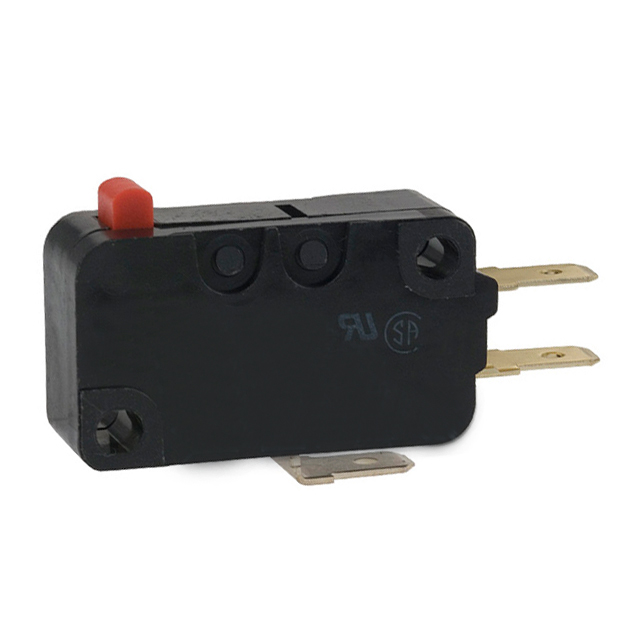

D3V-6G-3C3 _ Limit Switches_Switches

Part Number	D3V-6G-3C3
Manufacturer	Omron Electronic Components
Other Part Numbers	Z5030-ND -D3V-6G-3C3 D3V6G3C3 D3V6G3C3BYOMI Z5030
Description	SWITCH SNAP ACT SPST-NO 6A 250V
Detailed Description	Switch SPST-NO Chassis Mount

Category		Switches Limit Switches
Manufacturer		Omron Electronic Components
Series		D3V
Packaging		Bulk
Part Status		Obsolete
Current Rating (Amps)		6A (AC)
Mounting Type		Chassis Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-25°C ~ 105°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Actuator Type		Round (Pin Plunger)
Operating Force		50gf
Ingress Protection		IP40
Release Force		5.099gf
Pretravel		0.047" (1.2mm)
Differential Travel		0.012" (0.3mm)
Overtravel		0.040" (1.0mm)
Operating Position		0.579" (14.7mm)
Voltage Rating - AC		250 V

RESOURCE TYPE		LINK
Datasheets		D3V-6G-3C3
Datasheets		Basics of Basic Switches White Paper

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.7000
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
