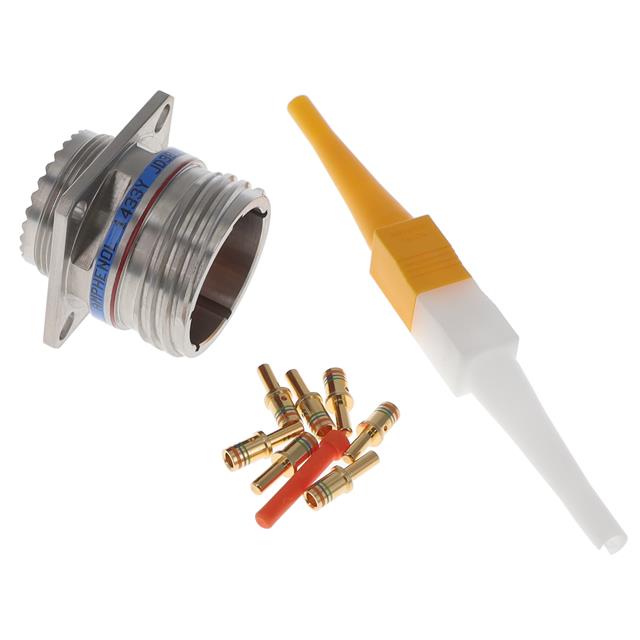

D38999/20KE6PN

Part Number
D38999/20KE6PN
Manufacturer Amphenol Aerospace Operations
Other Part Numbers
1178-D38999/20KE6PN-ND
1178-D38999/20KE6PN
D3899920KE6PN
Description STAINLESS STEEL D38999 SERIES II
Detailed Description 6 Position Circular Connector Receptacle, Male Pins Crimp
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Amphenol Aerospace Operations
Series
Military, MIL-DTL-38999 Series III, Tri-Start™ TV
Packaging
Box
Part Status Active
Connector Type Receptacle, Male Pins
Color Silver
Mounting Type Panel Mount
Shielding Shielded
Number of Positions 6
Orientation N (Normal)
Shell Size - Insert 17-6
Operating Temperature -65°C ~ 200°C
Applications Aerospace, Aviation, Marine, Military
Fastening Type Threaded
Termination Crimp
Ingress Protection Environment Resistant
Mounting Feature Flange
Contact Material Copper Alloy
Shell Size, MIL E
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Shell Material Stainless Steel
Insert Material Thermoplastic
Primary Material Metal

Documents & Media

RESOURCE TYPE LINK
Datasheets D38999/20KE6PN

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4020
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 50

Can ship immediately.
