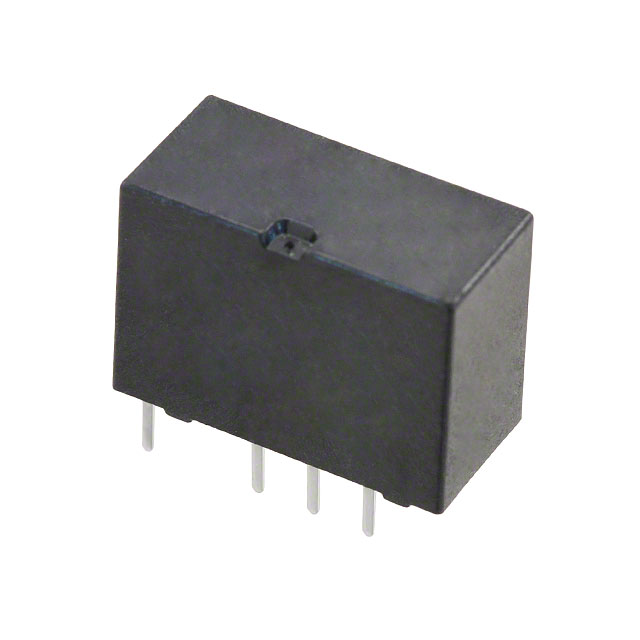

Part Number |
D3226
|
---|---|
Manufacturer | TE Connectivity Potter & Brumfield Relays |
Other Part Numbers |
PB1108-ND
PB1108
2-1462034-4
|
Description | RELAY TELECOM DPDT 2A 12V |
Detailed Description | Telecom Relay DPDT (2 Form C) Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Potter & Brumfield Relays | |
Series |
FX2, AXICOM
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |
Mounting Type | Through Hole | |
Coil Voltage | 12VDC | |
Operating Temperature | -40°C ~ 85°C | |
Termination Style | PC Pin | |
Relay Type | Telecom | |
Coil Current | 6.7 mA | |
Coil Type | Non Latching | |
Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) | |
Contact Form | DPDT (2 Form C) | |
Contact Rating (Current) | 2 A | |
Switching Voltage | 250VAC, 220VDC - Max | |
Must Release Voltage | 1.2 VDC | |
Must Operate Voltage | 8.4 VDC | |
Operate Time | 4 ms | |
Release Time | 3 ms | |
Load - Max Switching | 500VA, 440W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | D3226 | |
Datasheets | FX2 Relay 18/May/2018 | |
Datasheets | FX Series PINS |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.41.0020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
