Part Number |
D150J20C0GH63L6
|
---|---|
Manufacturer | Vishay BC Components |
Other Part Numbers |
1328PH-ND
D150J20COGH63L6
1328PH
D150J20COGHAAAC
1328PH-NDR
2252 506 27105
|

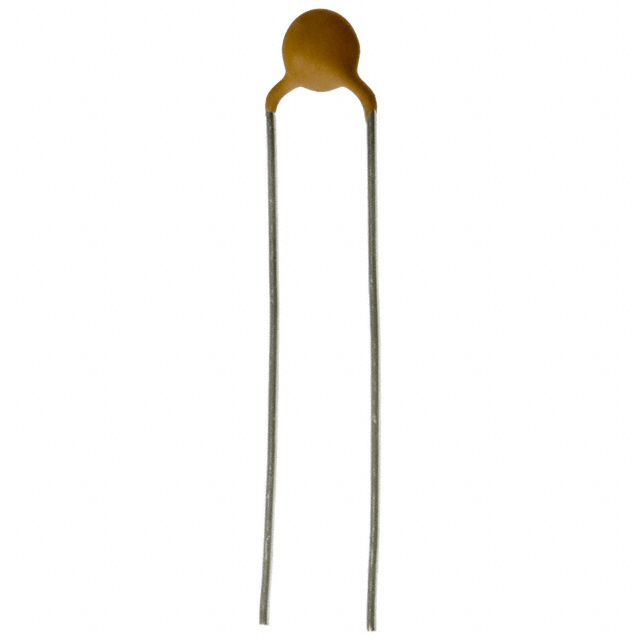

Description | CAP CER 15PF 100V NP0 RADIAL |
Detailed Description | 15 pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, Disc |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Vishay BC Components | |
Series |
D
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Tolerance | ±5% | |
Lead Style | Straight | |
Voltage - Rated | 100V | |
Package / Case | Radial, Disc | |
Temperature Coefficient | C0G, NP0 | |
Size / Dimension | 0.197" Dia (5.00mm) | |
Mounting Type | Through Hole | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Lead Spacing | 0.250" (6.35mm) | |
Height - Seated (Max) | 0.157" (4.00mm) | |
Capacitance | 15 pF |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | D150J20C0GH63L6 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8532.23.0060 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
