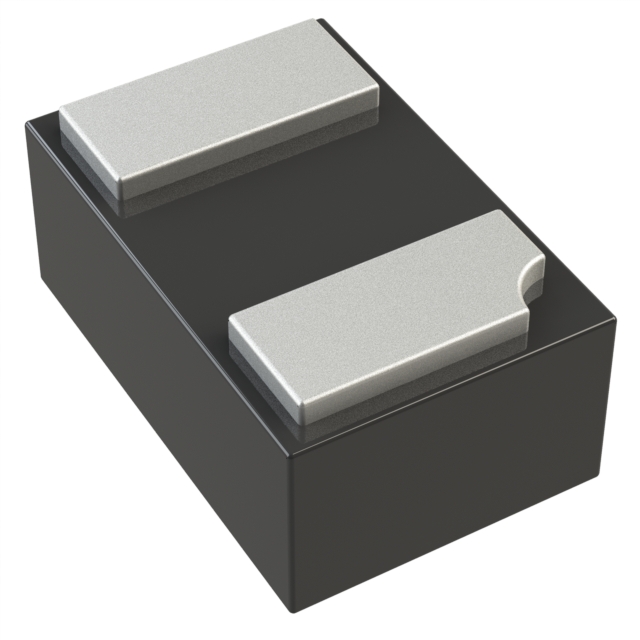

D12V0HA1U2LPQ-7B _ TVS Diodes_Transient Voltage Suppressors (TVS)_Circuit Protection

Part Number	D12V0HA1U2LPQ-7B
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-D12V0HA1U2LPQ-7BTR-ND 31-D12V0HA1U2LPQ-7BCT-ND 31-D12V0HA1U2LPQ-7BDKR-ND 31-D12V0HA1U2LPQ-7BCT 31-D12V0HA1U2LPQ-7BTR 31-D12V0HA1U2LPQ-7BDKR
Description	SURGE PROTECTION PP X1-DFN1006-2
Detailed Description	20V (Typ) Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount X1-DFN1006-2
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0402 (1006 Metric)
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-55°C ~ 150°C (TJ)
Capacitance @ Frequency		110pF @ 1MHz
Current - Peak Pulse (10/1000µs)		25A (8/20µs)
Voltage - Reverse Standoff (Typ)		12V (Max)
Supplier Device Package		X1-DFN1006-2
Unidirectional Channels		1
Voltage - Breakdown (Min)		13.5V
Voltage - Clamping (Max) @ Ipp		20V (Typ)
Power - Peak Pulse		500W
Power Line Protection		No
Grade		Automotive
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		D12V0HA1U2LPQ-7B

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
