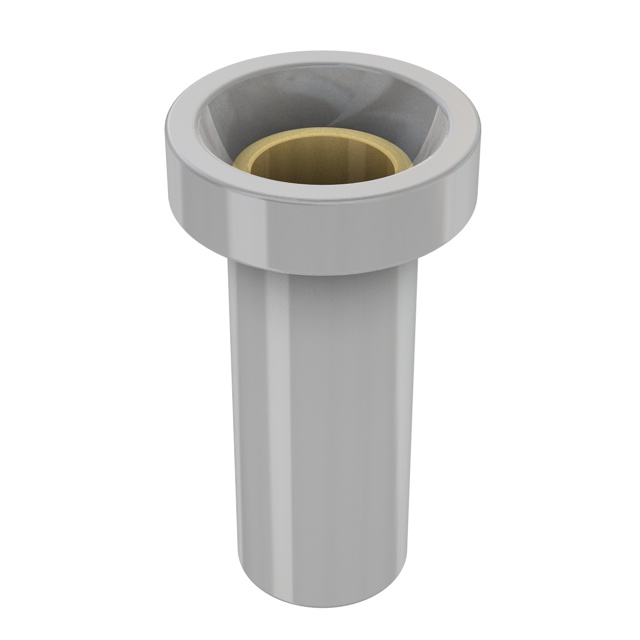

Part Number	D01-9901501
Manufacturer	Harwin
Other Part Numbers	D01-9901501-ND 3937-D01-9901501
Description	CONN PIN RCPT .016-.020 1=STRP15
Detailed Description	Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder
Manufacturer Standard Lead Time	13 weeks

Product Attributes

Category		Connectors, Interconnects Terminals PC Pin Receptacles, Socket Connectors
Manufacturer		Harwin
Series
Packaging		Tube
Part Status		Active
Features		Strip of 15
Contact Finish		Gold
Operating Temperature		-55°C ~ 100°C
Flange Diameter		0.057" (1.45mm)
Length - Overall		0.142" (3.61mm)
Termination		Solder
Mounting Hole Diameter		0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Contact Finish Thickness		3.94µin (0.10µm)
Contact Material		Beryllium Copper
Tail Type		No Tail
Accepts Pin Diameter		0.016" ~ 0.020" (0.41mm ~ 0.51mm)
Pin Hole Diameter		0.043" (1.09mm)
Socket Depth		0.124" (3.15mm)
Insertion Force		2.00N ~ 6.00N

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
